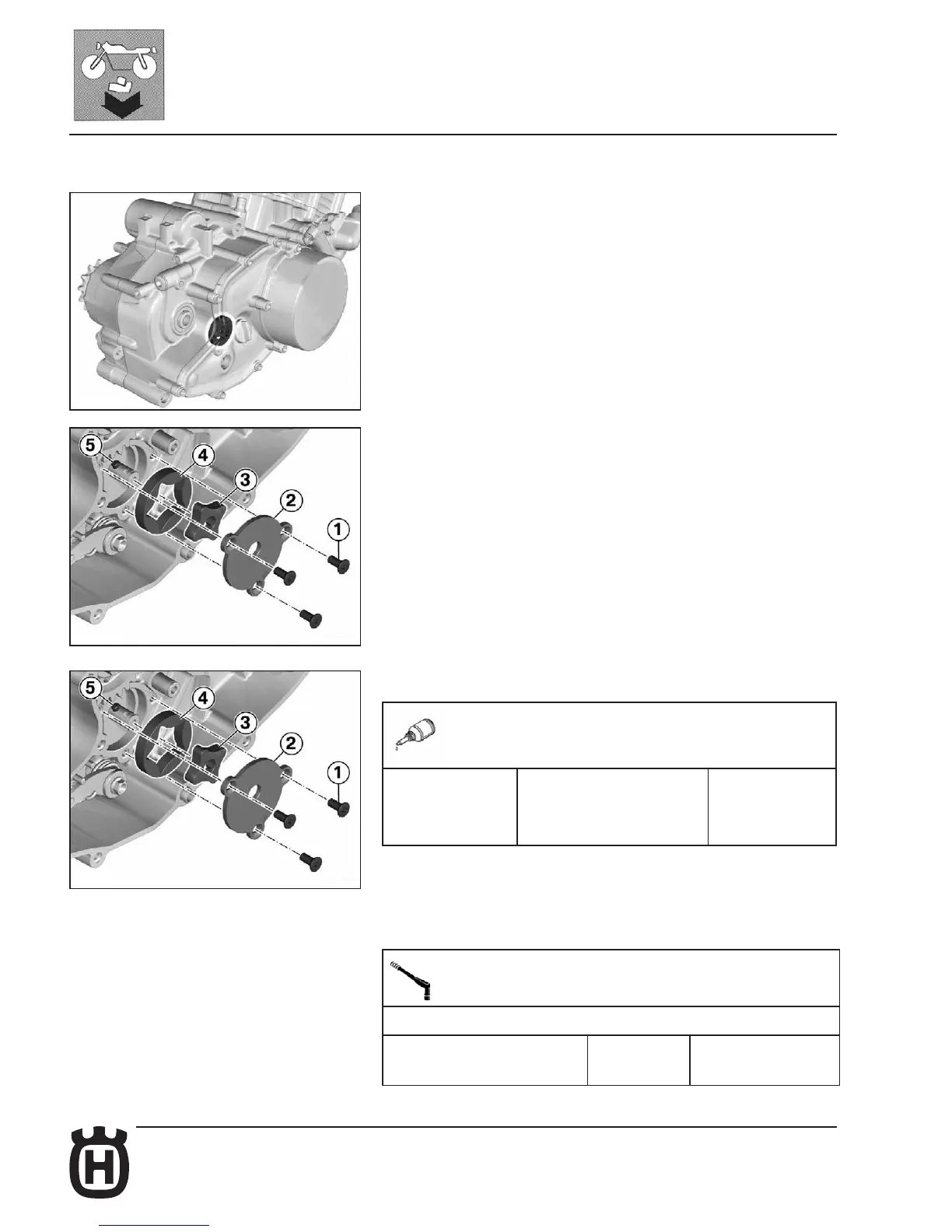

Oil intake pump replacement (crankcase cover removed)
Preliminary operations
Clutch housing axial bearing disassembly
Clutch thrust washer disassembly
Oil pump idler gear disassembly
Oil pump control gear disassembly
Oil intake pump disassembly
• Disassemble the following parts:
- Screws (1)
- Cover (2)
- Inner rotor (3)
- Outer rotor (4)
- Needle roller (5)
Fit oil intake pump
• Lubricate needle roller (5), outer rotor (4), and inner rotor (3).
Consumables
Molykote D Paste Clear solid lubricant for metal
part assembling and settling
• Assemble the following parts:
- Needle roller (5)
- Outer rotor (4), and inner rotor (3) with reference mark pointing out
- Cover (2)
• Fit screws (1).
Tightening torque gures
Pump cover on crankcase
M5 x 12, Microincapsulated
screw replacement
6 Nm
