Husqvarna TE511 - Connector Position (TXC)

M.55
H06356
18
H06357
1
2
4
3
H06358
7
5
6
9
H06457
8
10
ELECTRICAL SYSTEM
1
st
edition (08-2010)_Rev. 11-2010
18) Diagnostics connector

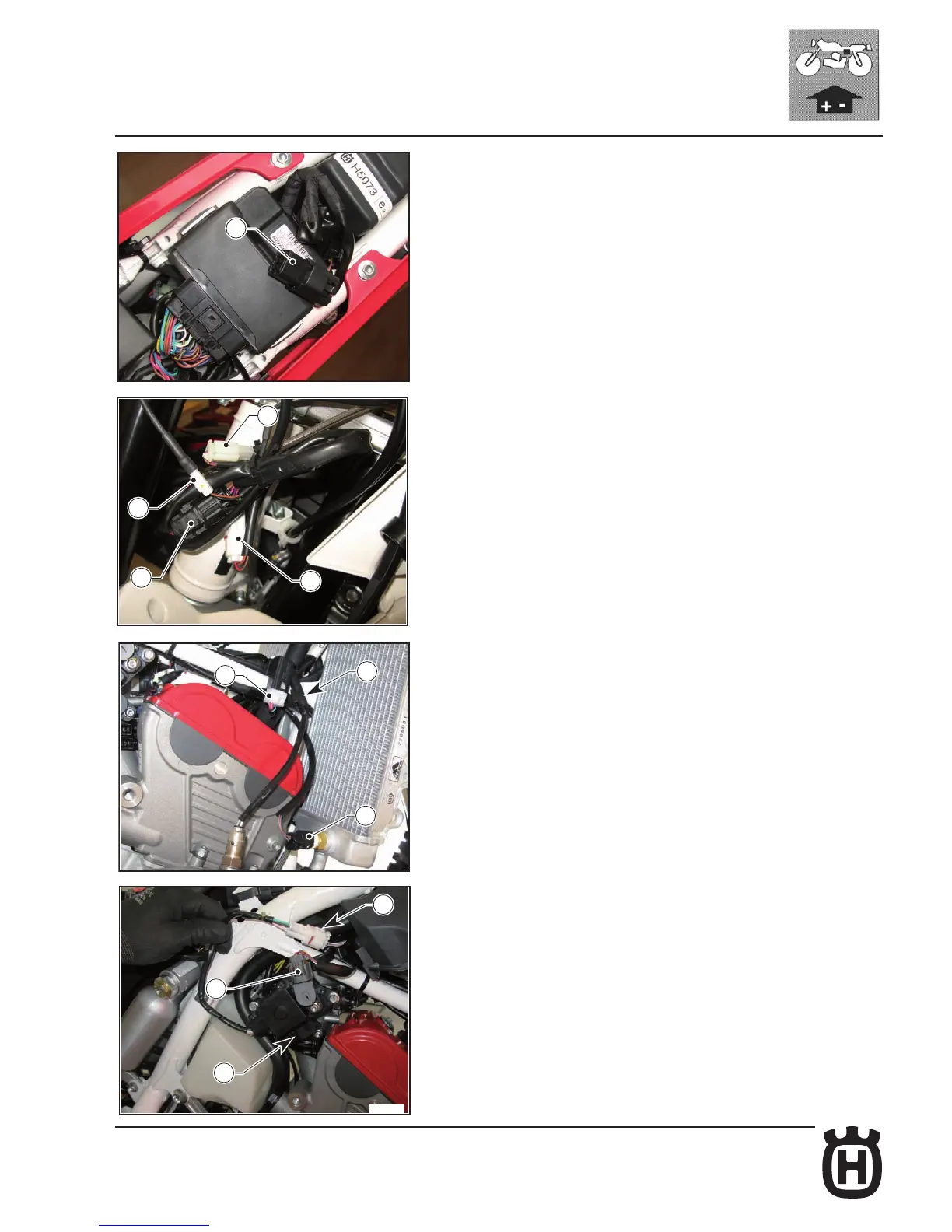

Connector position (TXC)
The following connectors are positioned under the number holder:
1) Speed sensor connector
2) Clutch connector
3) RH switch connector
4) Wiring harnesses connector
The following connectors are positioned on the bike right side:
5) Temperature sensor connector
6) Electric fan relay connector
7) Lambda sensor connector
8) 2
nd
throttle connector
9) 2
nd
throttle TPS connector
10) TPS connector
