Chain sprocket removal

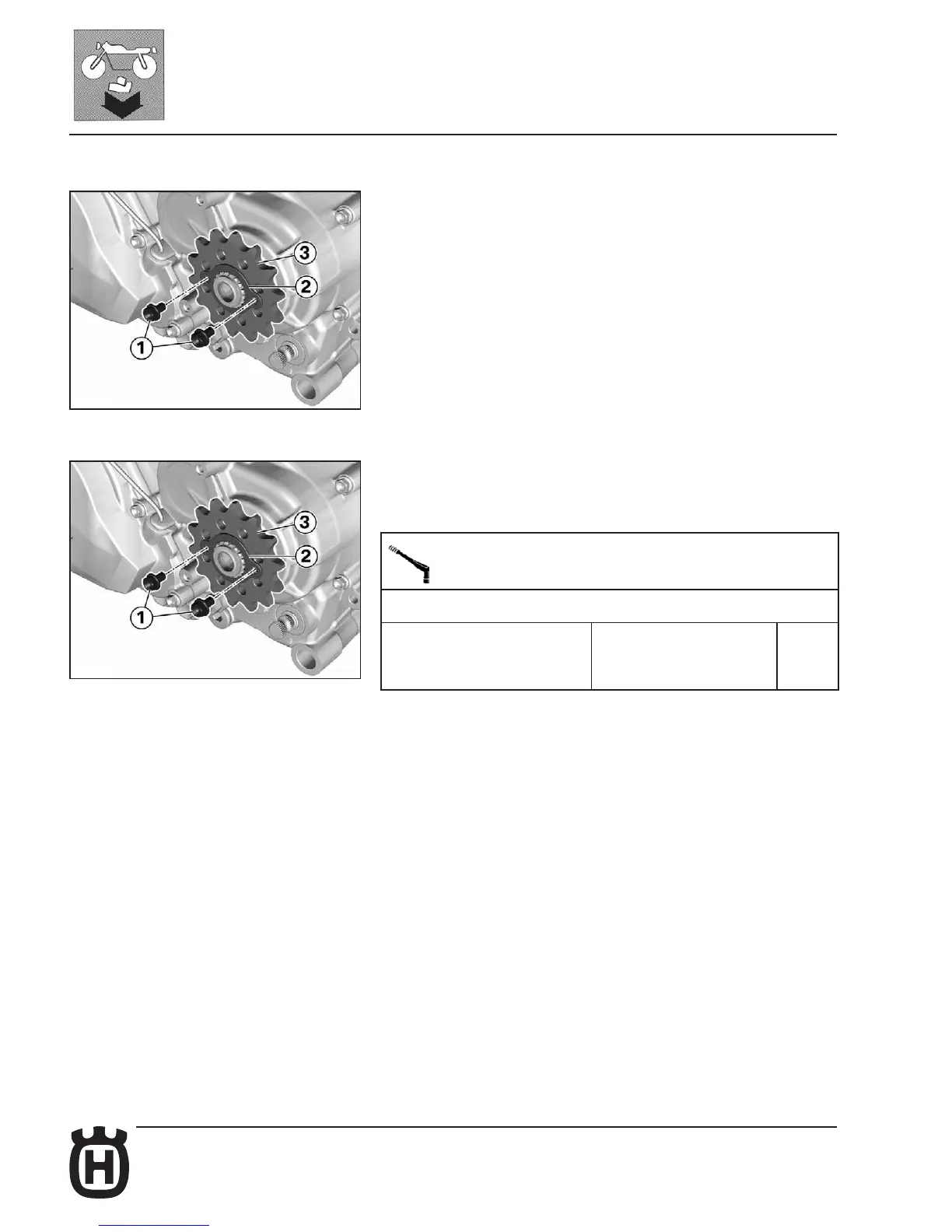

• Remove screws (1), and stop washer (2).
• Remove chain sprocket (3).
Chain sprocket
Sprocket assembly
• Assemble chain sprocket (3).
• Fit stop washer (2), and new screws (1).
Tightening torque gures
Sprocket on gearbox output shaft
M5 x 8 - 10.9, Microincapsulated
screw replacement
6 Nm
