Husqvarna TE511 - Connector Position (TC)

M.53
H06348
35
H06350
4
H06349
1
3
2
H06351
6
9
7
8
5
ELECTRICAL SYSTEM
1
st
edition (08-2010)_Rev. 11-2010

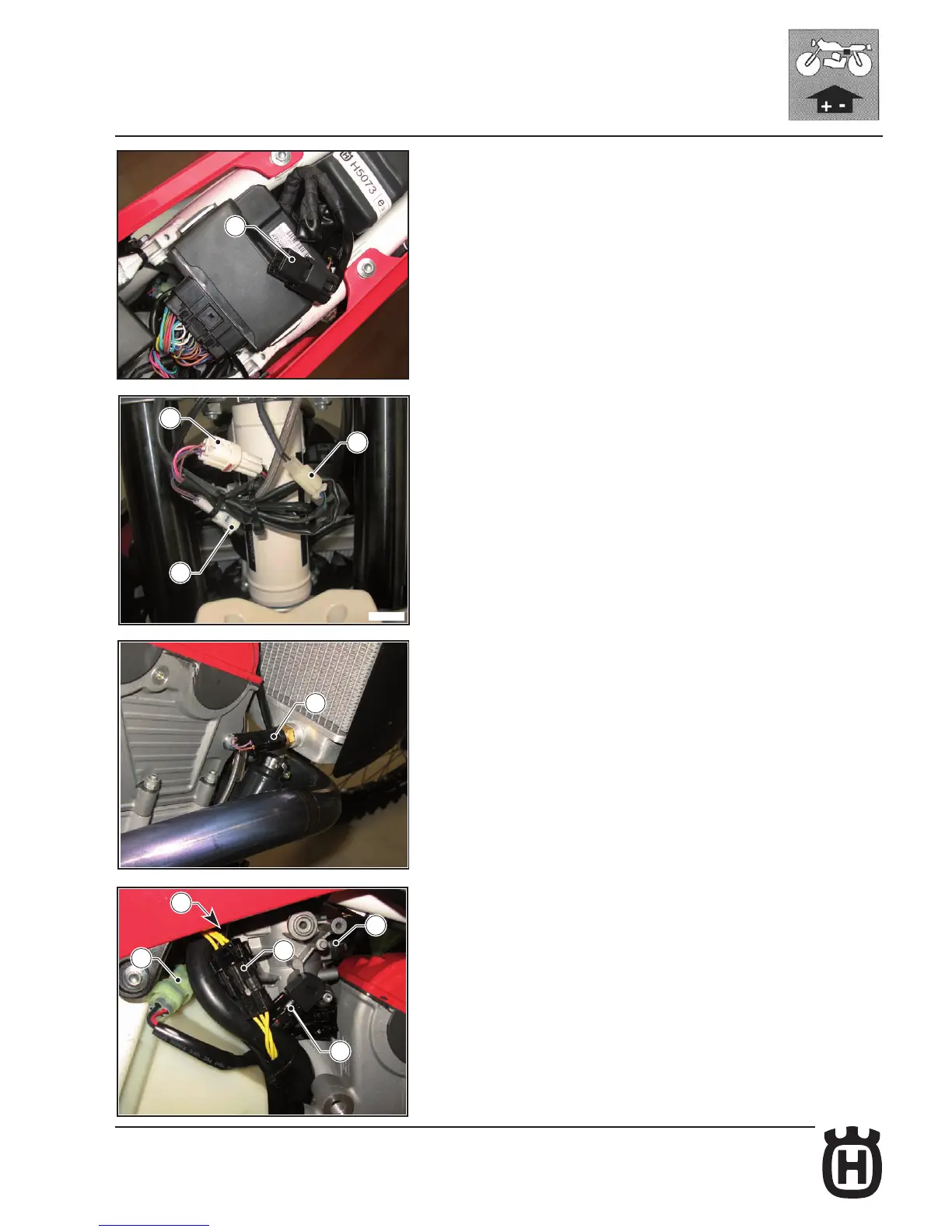

35) Diagnostics connector
Connector position (TC)
The following connectors are positioned on the front side, below the number
holder:
1) RH switch connector
2) Clutch sensor connector
3) Engine stop connector
The following connectors are positioned on the bike right side:
4) Temperature sensor connector
5) TPS connector
6) Generator connector
7) Fuel pump connector
8) Injection connector
9) Pressure sensor connector
