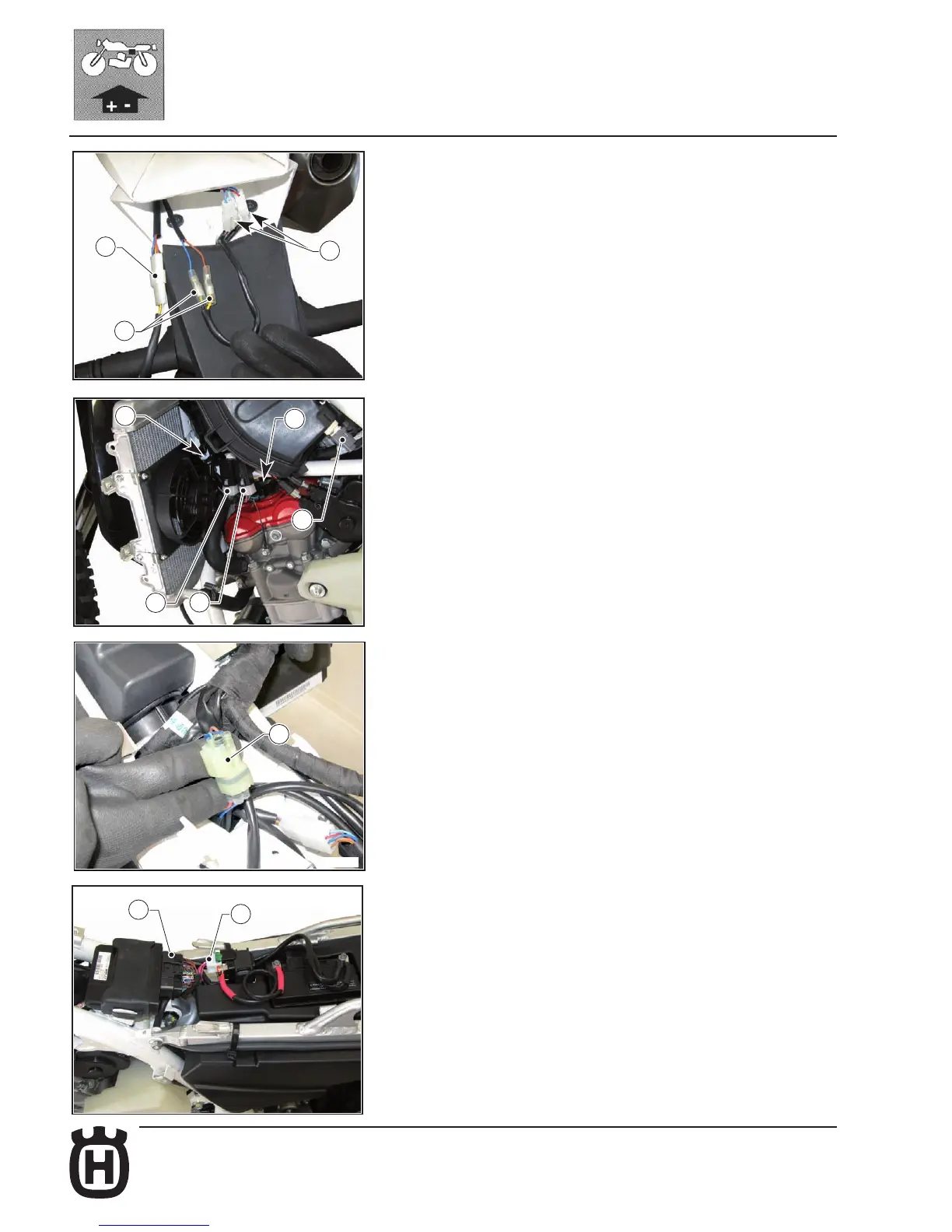

The following connectors are positioned on the bike rear side:
24) Tail light connector
25) Rear turning indicator connector
26) Number plate light connector
The following connectors are positioned on the bike left side:
27) Main starting relay connector
28) Fuel pump relay connector
29) Air temperature sensor connector
30) Electric fan connector
31) Coil connector
The following connectors are positioned under the saddle:
32) Fuel pump connector
33) Electronic control unit connector
34) Solenoid starter connector
