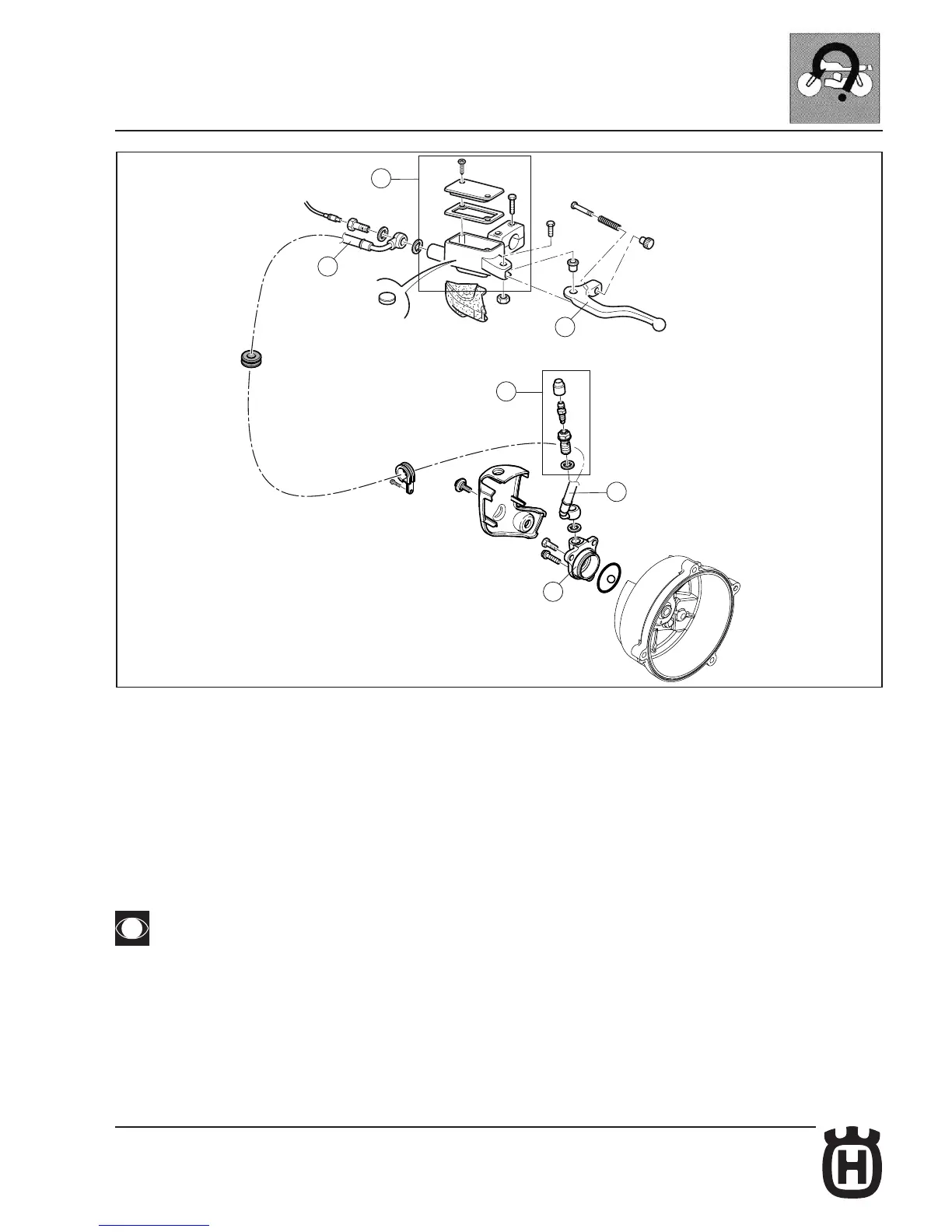

Hydraulic clutch system
The hydraulic circuit is composed of a master cylinder with its reservoir located
on the left side of the handlebar, and a piston installed on the right crankcase
half. Clutch is disengaged through piston (1) that works on clutch pushrod.
1 Clutch master cylinder
2 Clutch lever
3 Master cylinder to piston hose
4 Piston assembly
5 Bleed tting
The uid used in the hydraulic circuit will damage painted parts if
spilt on them. Handle it with care when servicing the system.
