Husqvarna TE511 - Radiator Removal

E.39
H02509
2
1
H02510
1
2
2
H02508
1
2
H02507
1
1
st
edition (08-2010) _Rev. 11-2010
GENERAL PROCEDURES

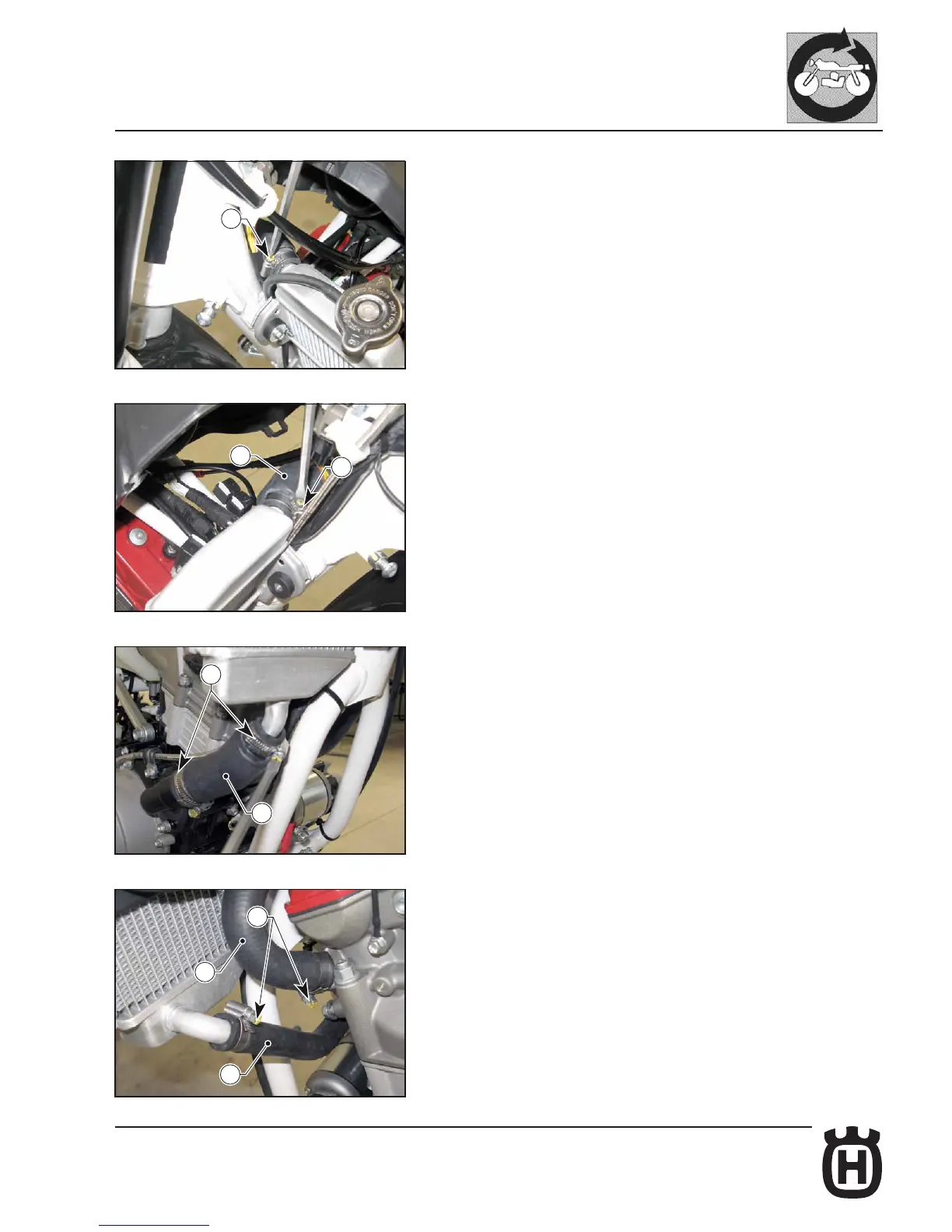

Radiator Removal
- Remove saddle, side panels, scoops, and radiator grids as described in the
relevant paragraphs.
- Drain off all coolant as indicated in the relevant paragraph.
- Loosen clamps (1) and remove hoses (2).
