Husqvarna TE511 - Crankshaft Axial Clearance Adjustment, Left Side; Crankshaft Axial Clearance Adjustment, Right Side

F1.79
H01796
H01797
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

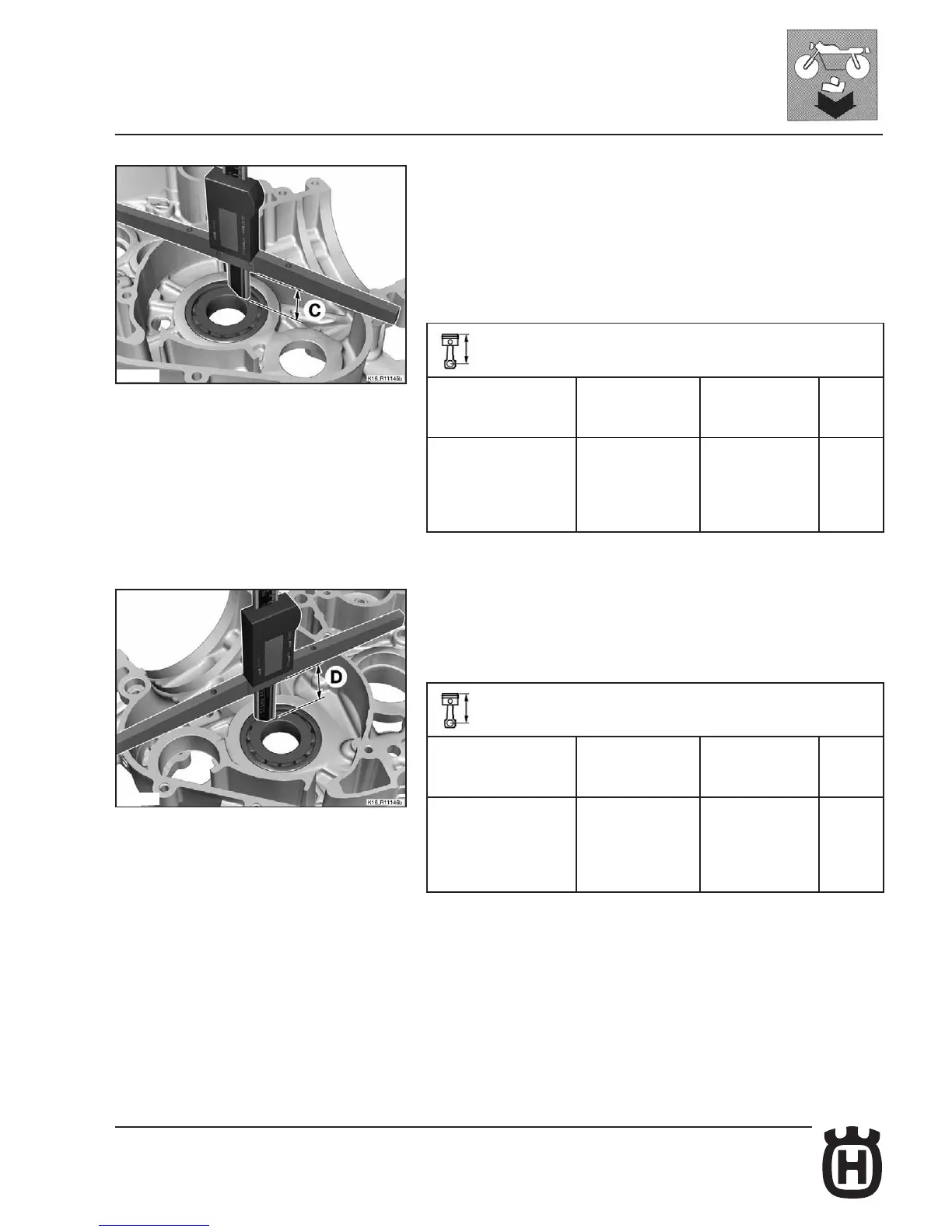

Crankshaft axial clearance adjustment, left side
• Measure left bearing (C) seat depth using a depth gauge.
• Add to this value half of crankcase gasket value.
• The value measured on left crankshaft (A1) is deducted from the measured
left bearing seat depth (C + half gasket value). If needed, adjust axial clear-
ance using a thrust washer.
Technical specications
Crankcase gasket
thickness
0.5 mm
Crankshaft space
washer thickness
0.1 mm
0.15 mm
0.2 mm
0.25 mm
0.3 mm
Crankshaft axial clearance adjustment, right side
• Measure right bearing (D) seat depth using a depth gauge.
• Add to this value half of crankcase gasket value.
• The value measured on right crankshaft (A1 + B) is deducted from the meas-
ured right bearing seat depth (C + half gasket value). If needed, adjust axial
clearance using a thrust washer.
Technical specications
Crankcase gasket
thickness
0.5 mm
Crankshaft space
washer thickness
0.1 mm
0.15 mm
0.2 mm
0.25 mm
0.3 mm
