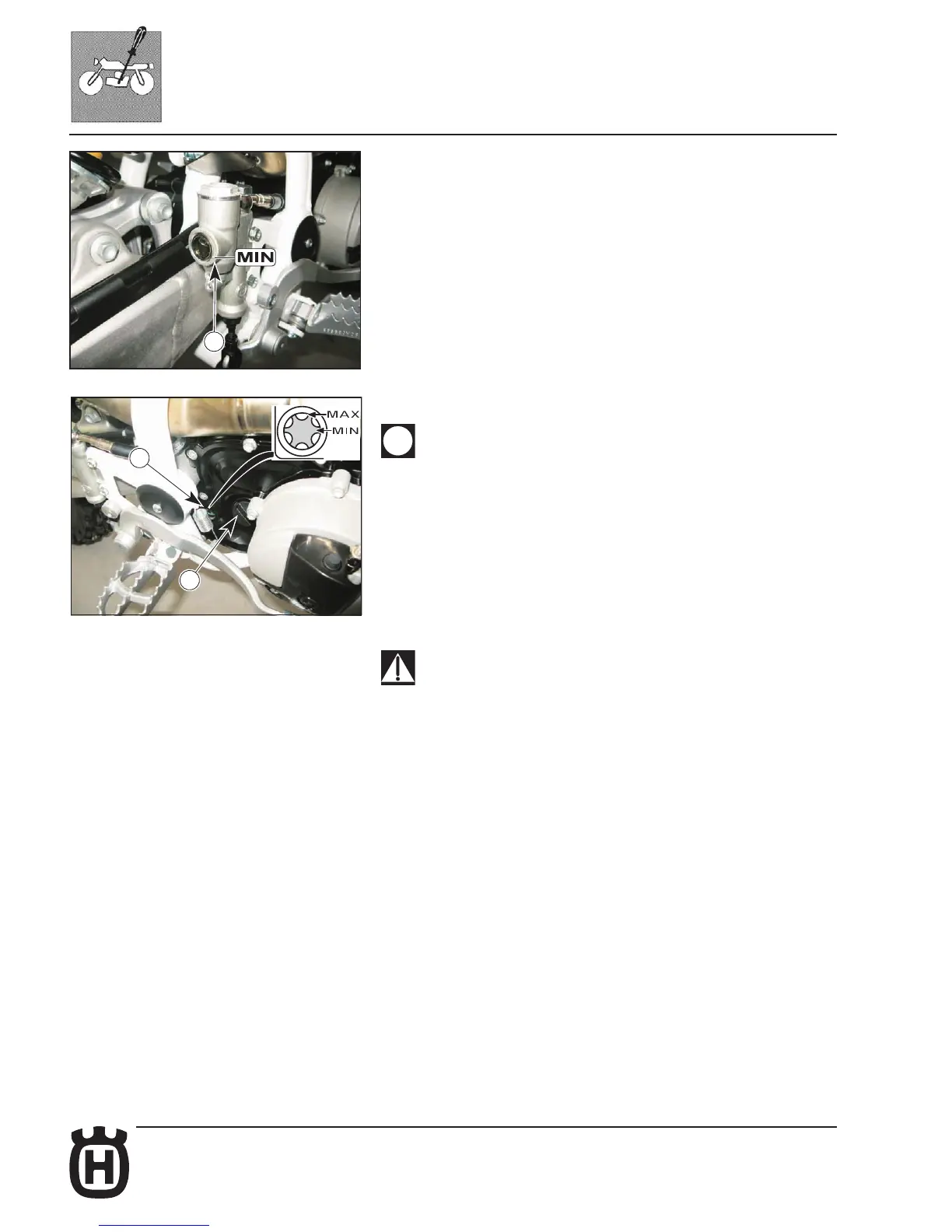

Rear brake uid level check
Level (A) must be between the MIN and MAX notches visible on the master
cylinder reservoir.
Engine oil level check
Oil level depends on oil temperature. The higher the temperature, the
higher the oil level inside oil sump. Should oil level be checked with the
engine cold or after short runs, wrong readings may be taken, with con-
sequent wrong topping-up.
- Start vehicle as described in the relevant section, let it run for approx. 3 to
5 minutes so as to warm engine up.
- Turn engine off.
- With the vehicle in a flat ground and in vertical position, check oil level through
the inspection sight glass (1) positioned on engine right casing.
Make sure the level is in between the MIN and MAX notches.
- To top up, remove filler cap (2).
To ensure that oil quantity does not exceed “MAX” level, set the vehicle
on the side stand (TE-TXC-SMR) or on triangle stand (left side - TC) and
check, through the sight glass (1), that in this position the level drops
below the “MAX” reference notch.
