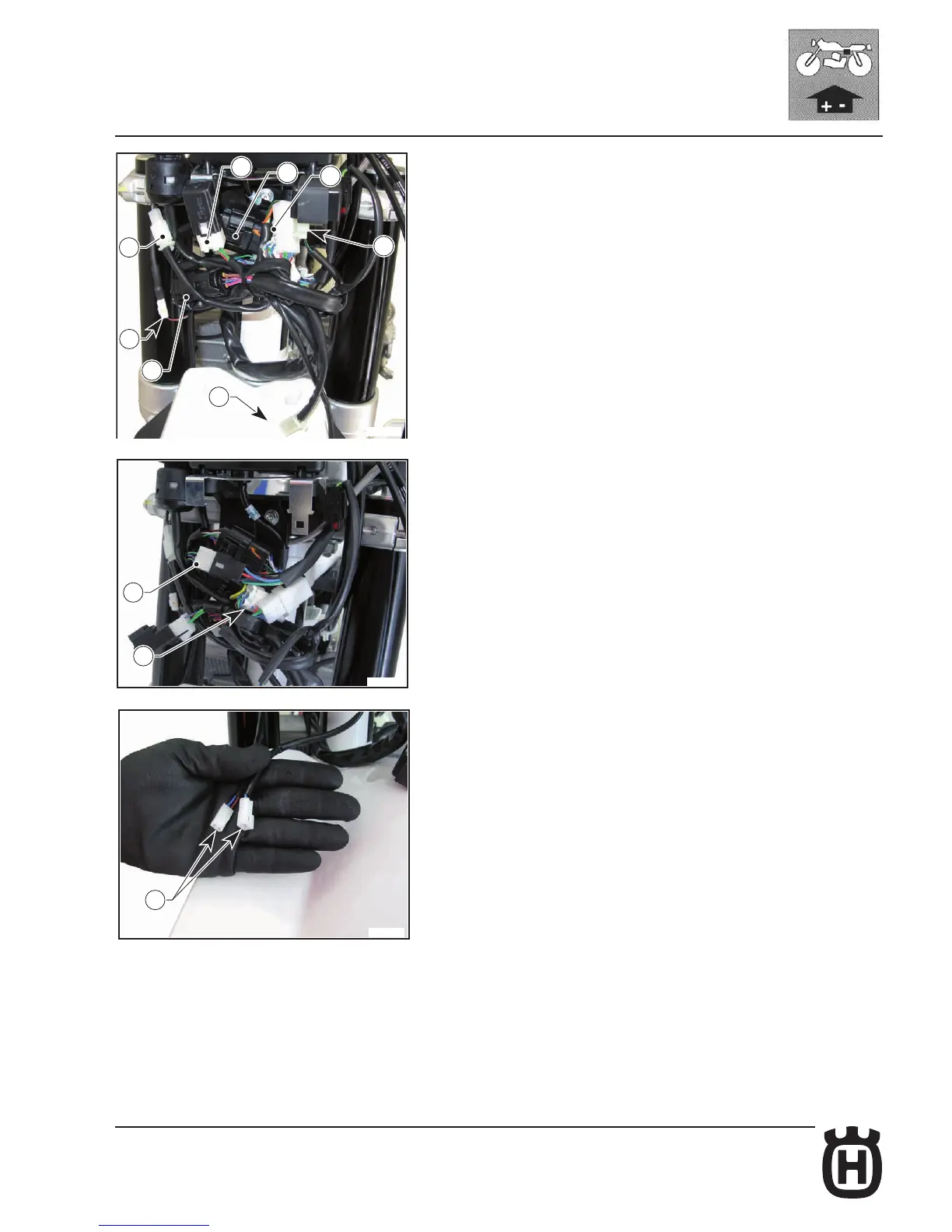

Connector position (TE - SMR)
The following connectors are positioned on the front side, below the headlamp
fairing:
1) Headlamp connector
2) Turning indicator asher connector
3) Light relay connector
4) Dashboard connector
5) Wiring harnesses connector
6) Front brake stop switch connector
7) Speed sensor connector
8) Ignition switch connector
9) Left-hand dip switch connector
10) Right-hand switch connector
11) Front turning indicator connector
