ELECTRICAL SYSTEM
1
st
edition (08-2010)_Rev. 11-2010

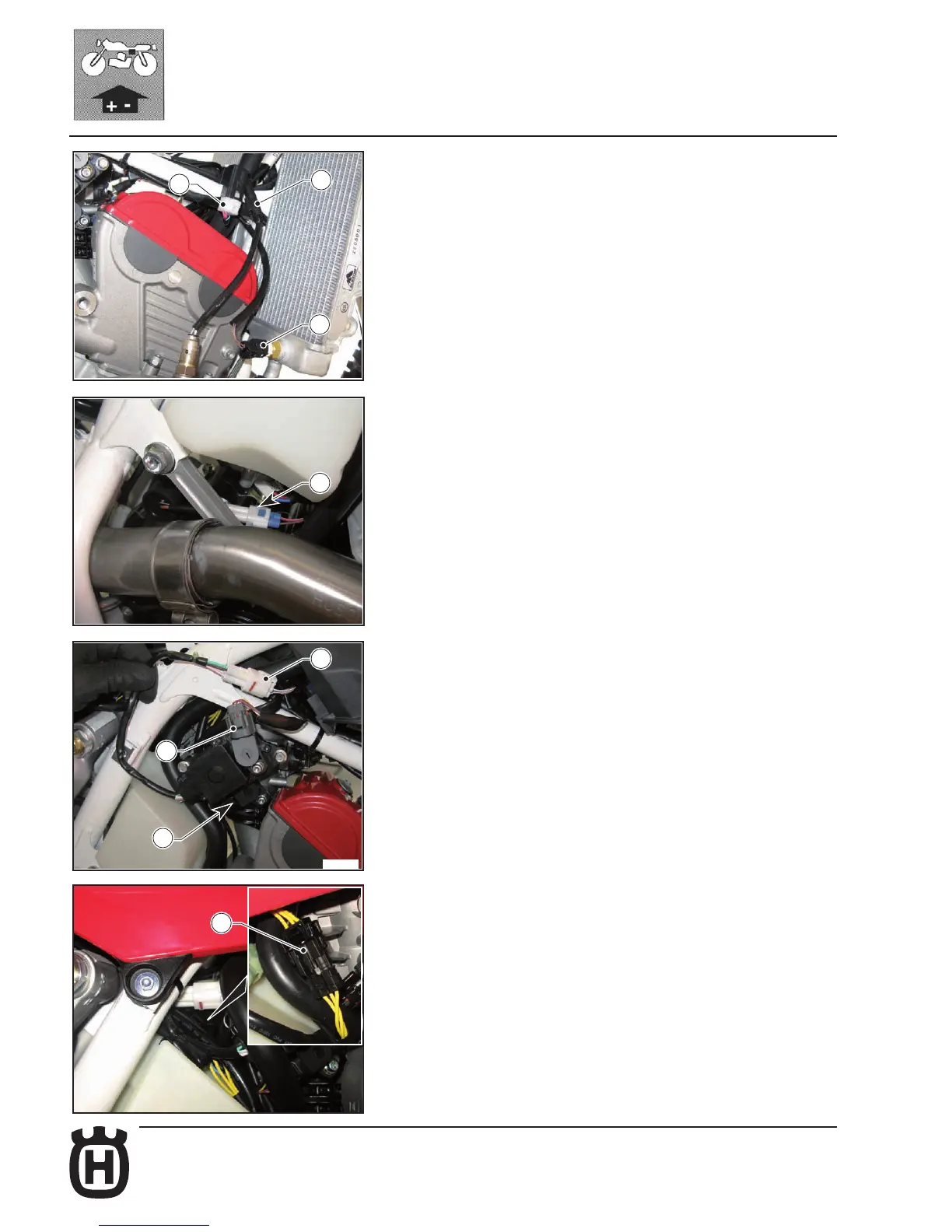

The following connectors are positioned on the bike right side:
12) Temperature sensor connector
13) Electric fan relay connector
14) Lambda sensor connector
15) Condenser connector
16) 2
nd
throttle connector
17) 1
st
throttle connector
18) Sensor connector
19) Current generator connector
