Husqvarna TE511 - Coolant Pump Drive Replacement (Crankcase Cover Removed); Slider Loosening at the Lower Area; Coolant Pump Shaft Disassembly

F1.40
H01889
H01944
H01945
ENGINE DISASSEMBLY/REASSEMBLY
1
st
edition (08-2010) _Rev. 11-2010

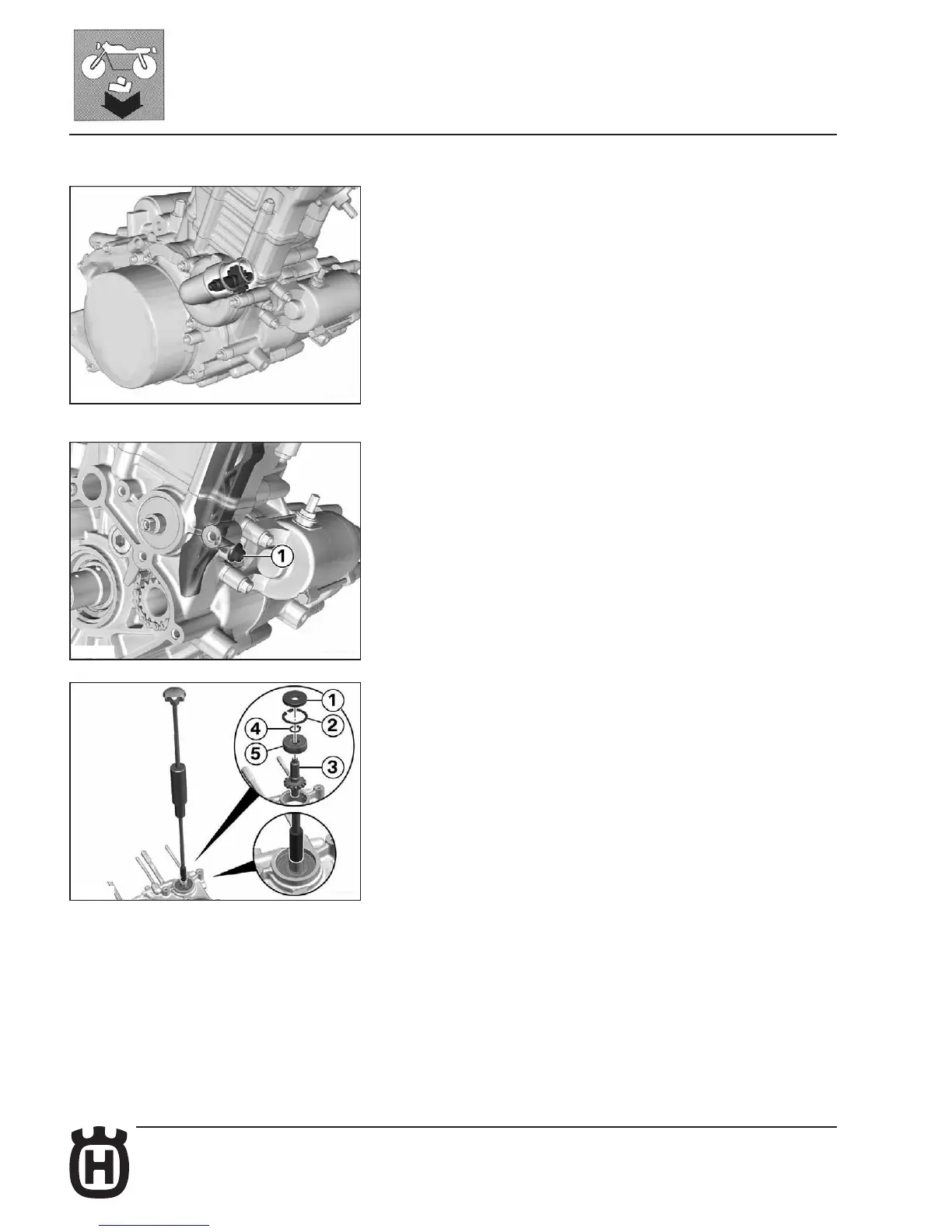

Coolant pump drive replacement (crankcase cover removed)
Slider loosening in the lower area
• Remove screw with O-Ring (1).
Coolant pump shaft disassembly
• Disassemble the following parts:
- Oil seal (1)
- Stop ring (2)
• Take special care not to let timing chain touch coolant pump gear.
• Remove shaft (3) and front bearing (5) using a suitable sliding hammer pull-
er.
• Remove stop ring (4) and bearing (5) from shaft (3).
