Husqvarna TE511 - Chain Slider Removal

E.32
H02484
4
5
6
H02483
5
6
4
H02482
2
1
3
H02517
1
st
edition (08-2010) _Rev. 11-2010

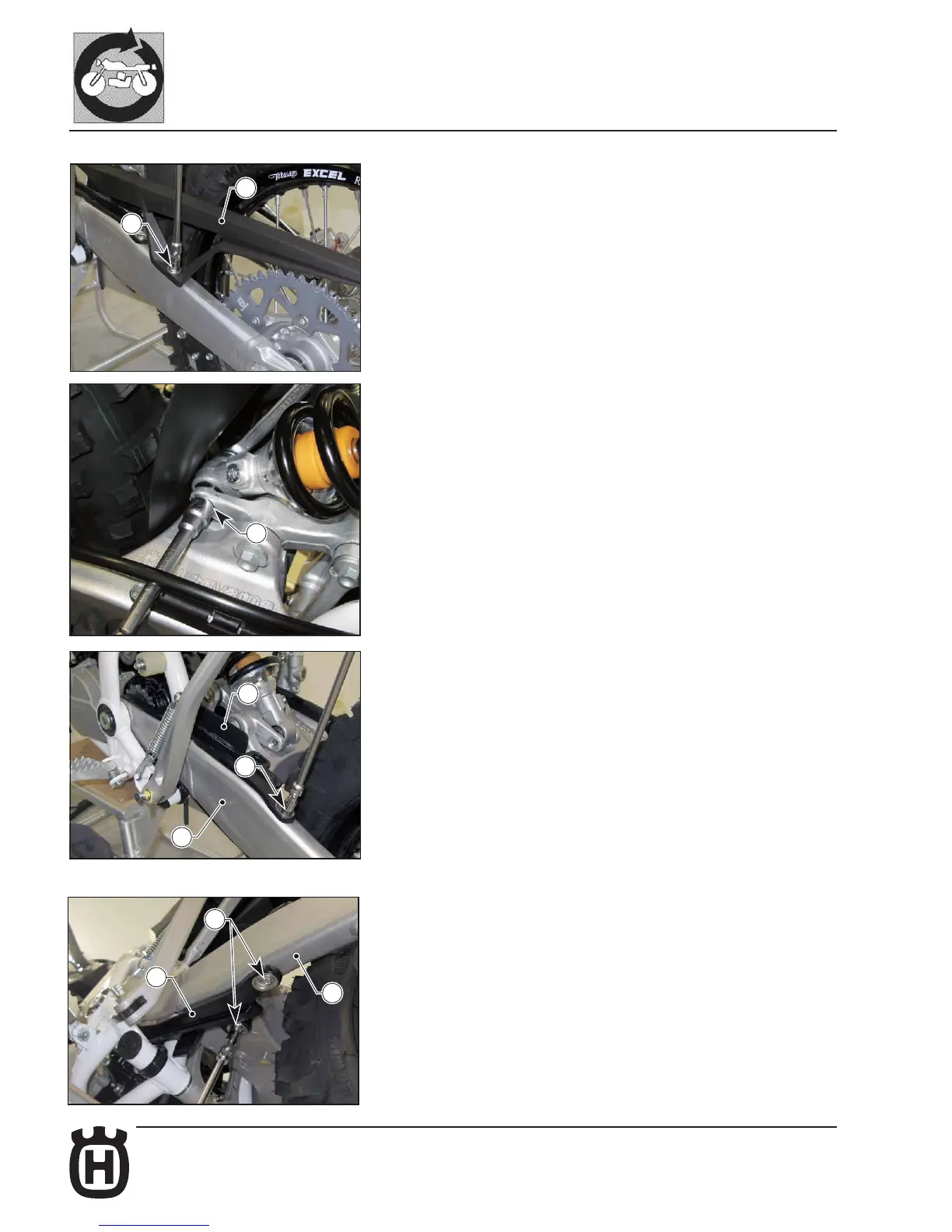

GENERAL PROCEDURES
Chain slider removal
- Remove chain and gear shift pedal as indicated in the relevant para-
graphs.
- Loosen screw (2), and remove chain guard (1).
- Fit a support under the engine so that the rear wheel is raised off the
ground.
- Loosen lower screw (3) using two 14 mm wrenches.
- Loosen the three screws (4) (with a 8 mm wrench) securing chain slider (5)
to swinging arm (6).
