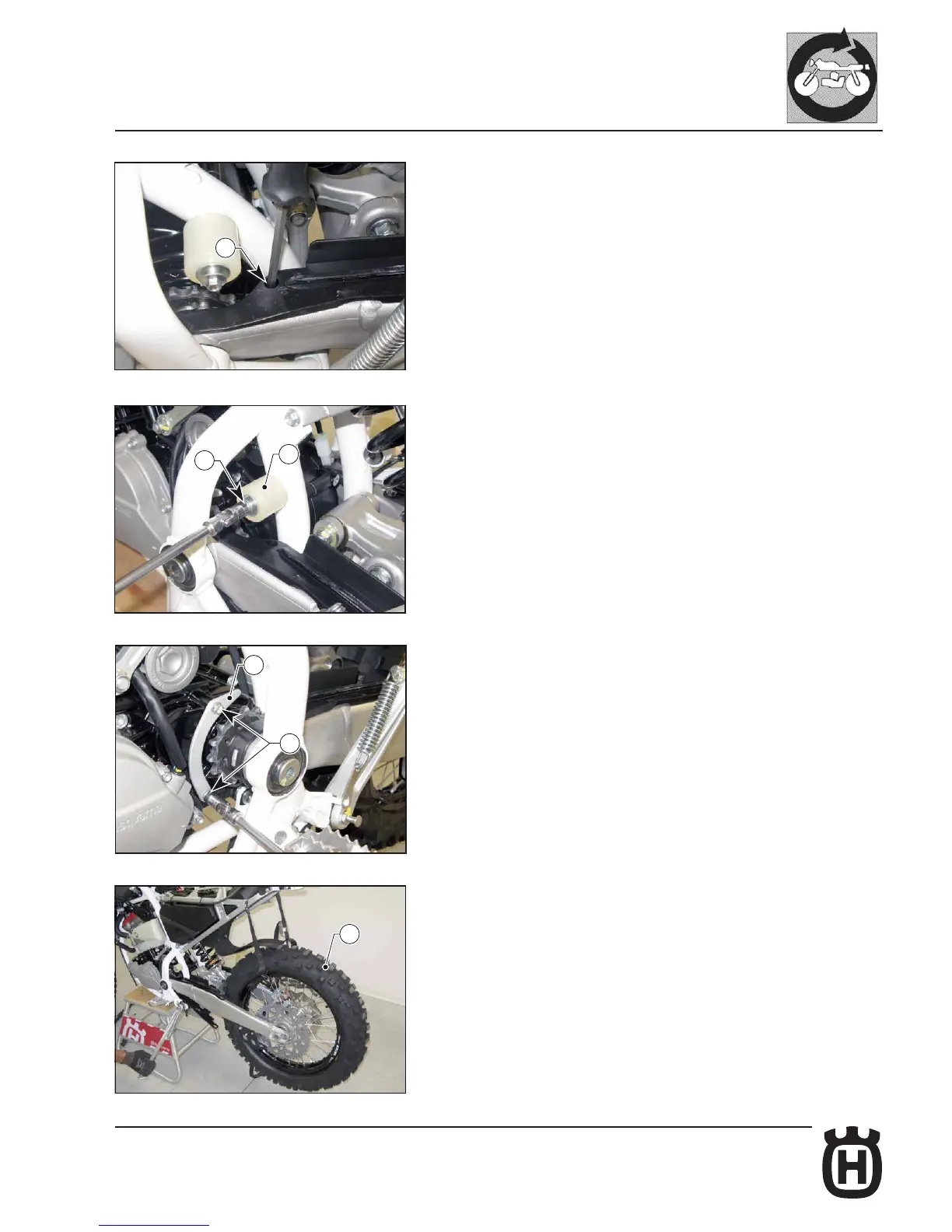

GENERAL PROCEDURES
- Loosen screw (7) with a Phillips screwdriver.
- Loosen screw (9) (with a 8 mm wrench) and remove chain roller (8).
- Loosen screws (11) (with a 8 mm wrench) and remove sprocket guard
(10).
- Raise rear wheel (12) and keep it raised off the ground with a belt.
