- reassembly is a reverse of removal;

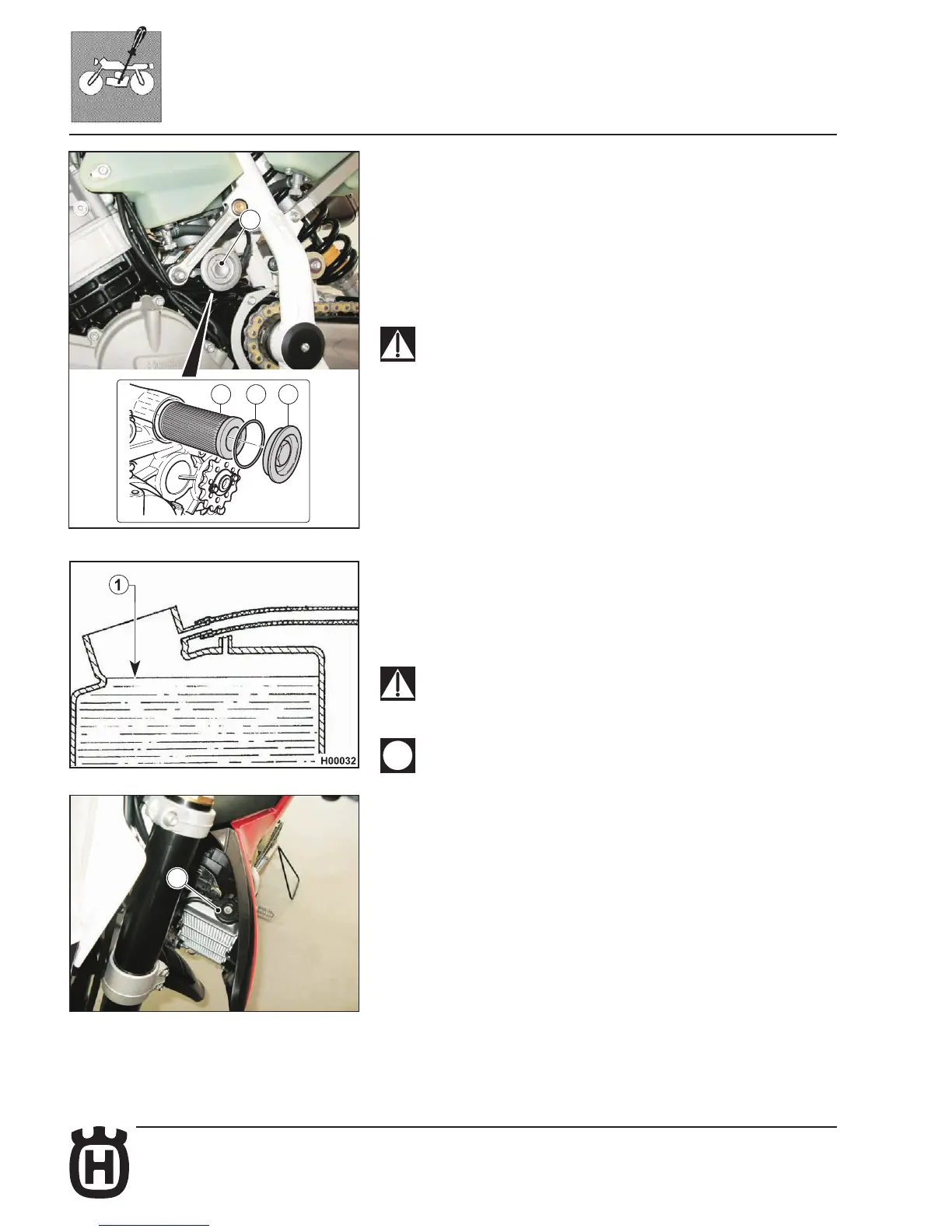

- undo cap (7) and remove cartridge filter (8);
(on reassembly, tighten plug (7) to a torque of 15 Nm / 1.5 Kgm / 11.6 ft/lb)
- replace filter (8), lubricate O-ring (9), and screw cap (7);
- once filter has been replaced, refit oil drainage plug (2), and pour the recom-
mended quantity of oil.
Start the engine to allow the oil to reach all the points of the engine and
check the level as described in the relevant paragraph.
To ensure that oil quantity does not exceed “MAX” level, set the vehicle
on the side stand (TE-TXC-SMR) or on triangle stand (left side - TC) and
check, through the sight glass (1), that in this position the level drops
below the “MAX” reference notch.
Coolant level check
Check level (1) inside left radiator, with the engine cold and the vehicle in vertical
position. The coolant should be approximately 10 mm (0.4 in) above the cells.
The radiator cap (2) features two locking positions, the rst one is for prior dis-
charge of pressure from the cooling system.
Avoid removing radiator cap (2) when engine is hot, as coolant may spout
out and cause scalding.
Difculties may arise in eliminating coolant from painted surfaces. If this
occurs, wash off with water.
