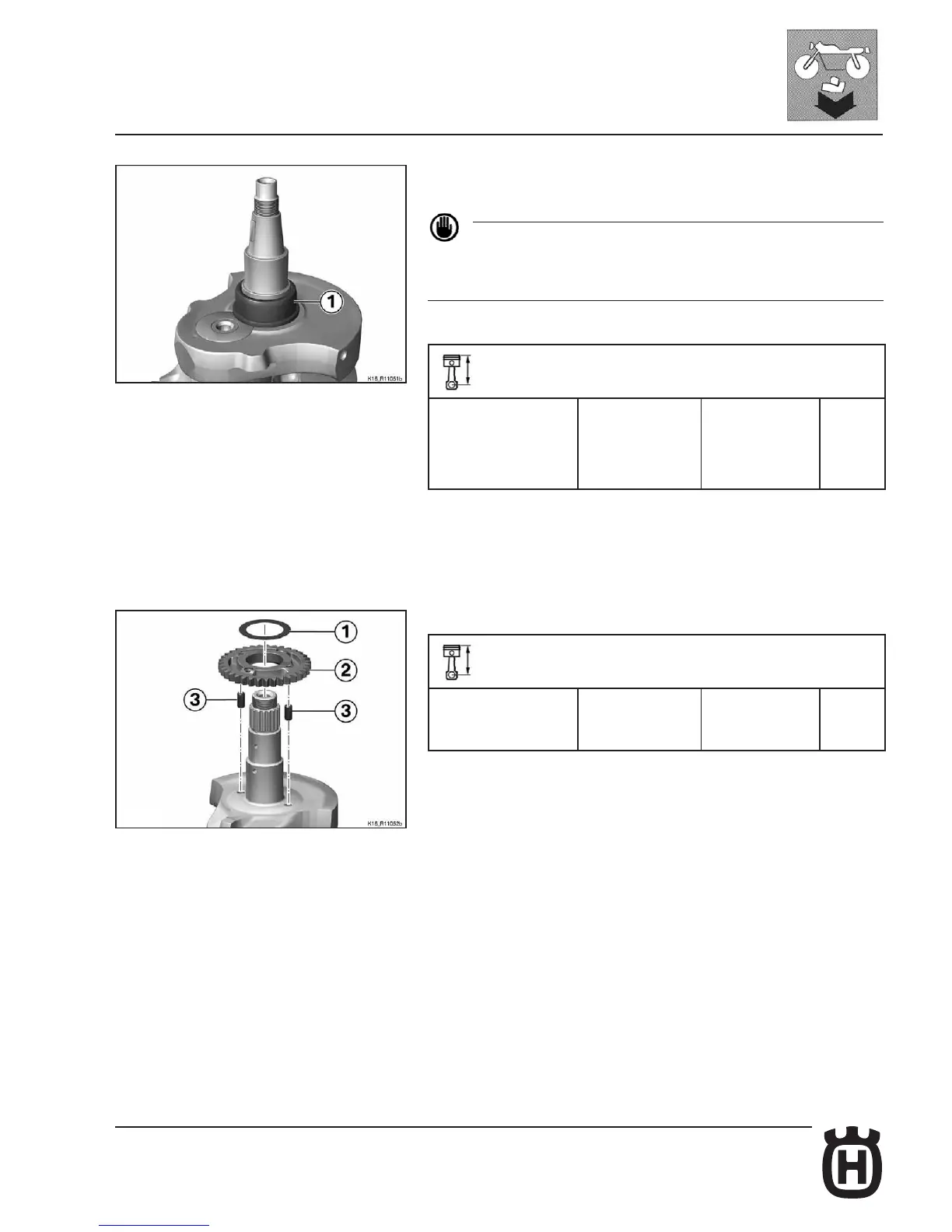

Crankshaft left bearing bushing assembly
• If necessary, t space washer.
Warning
Burn hazard in case of contact with hot/heated parts.
Should you have to touch hot parts, wear protective gloves.
• Heat bearing bushing (1).
Technical specications
Pre-heating
temperature of puller
for main bearing inner
rings
300 °C
• Spray crankshaft with cooling uid.
• Fit bearing bushing (1) using a suitable tool.
Oil pump gear assembly onto crankshaft
• Fit reference pins (3).
• Heat gear (2).
Technical specications
Release/connection
temperature
80 °C
• For installation, refer to the reference marks.
• Spray crankshaft with cooling uid.
• Fit gear (2) using a suitable tool.
• If necessary, t thrust washer (1).
