Husqvarna TE511 - Front Mudguard Removal; Number Plate Holder Removal (te - SMR)

E.5
H02403
1
2
3
H02404
2
1
H02405
2
3
H02406
4
1
st
edition (08-2010) _Rev. 11-2010
GENERAL PROCEDURES

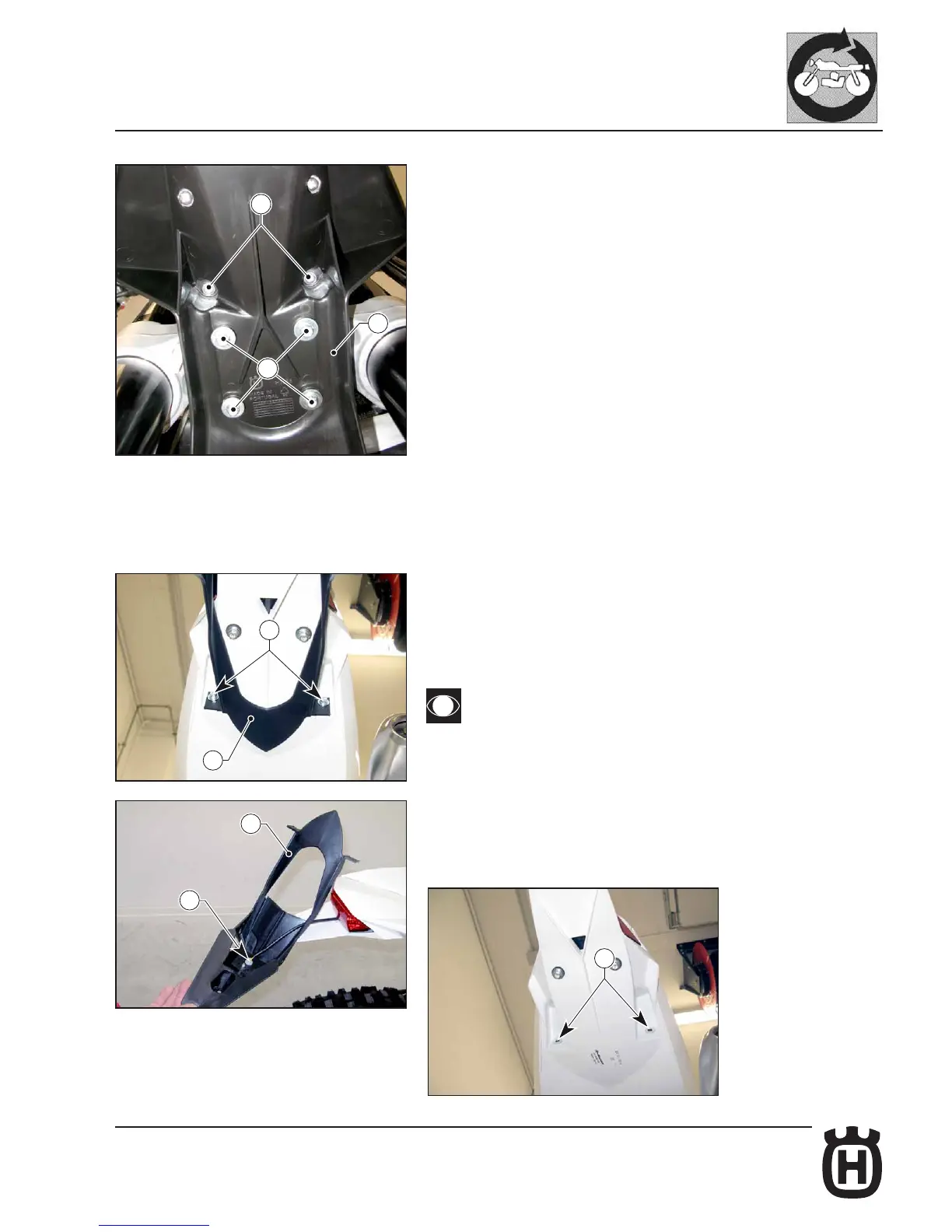

Front Mudguard Removal
- Loosen the two screws (1) securing headlamp fairing/number plate holder
and mudguard.
- Loosen the four screws (2) with a 8 mm wrench, and remove front mudguard
(3).
Number Plate Holder Removal (TE - SMR)
- Remove rear turning indicators, as described in the relevant section.
- Using a 8 mm wrench, loosen the two screws (1), disconnect number plate
bulb (3) and remove number plate holder (2).
On reassembly, check the correct positioning of the two bushings (4).
