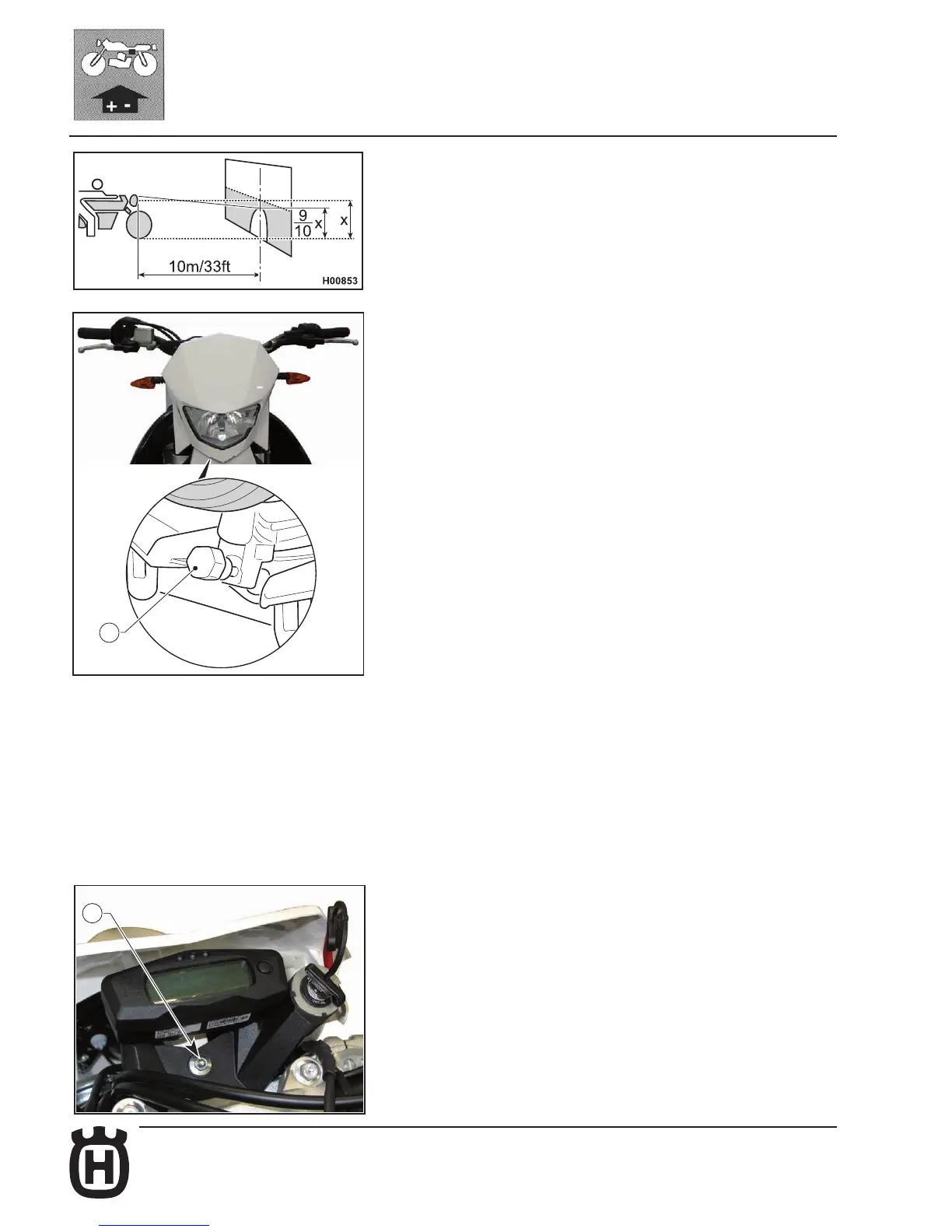

HEADLAMP, TAIL LIGHT (TE - SMR)
Headlamp adjustment
The headlamp features a twin bulb for low and high beam and a festoon bulb
for the city or parking light. Beam setting needs to be performed accurately;
proceed as follows:
- Place the motorcycle 10 metres (32.8 ft) away from a vertical wall;
- The motorcycle must be on level ground and the optical axis of the headlamp
must be perpendicular to the wall;
- The motorcycle must be upright;
- Measure the height from the ground to the centre of the lamp and draw a
cross on the wall at the same height;
- When the low beam is on, the upper edge between dark and lit zone should
be at 9/10th of the height of headlamp centre from ground. Beam height can
be raised or lowered turning the screw (1).
Headlamp bulb replacement (TE - SMR)
Proceed as follows to reach the headlamp bulbs:
- Loosen upper screw (1) using an 8 mm wrench;
