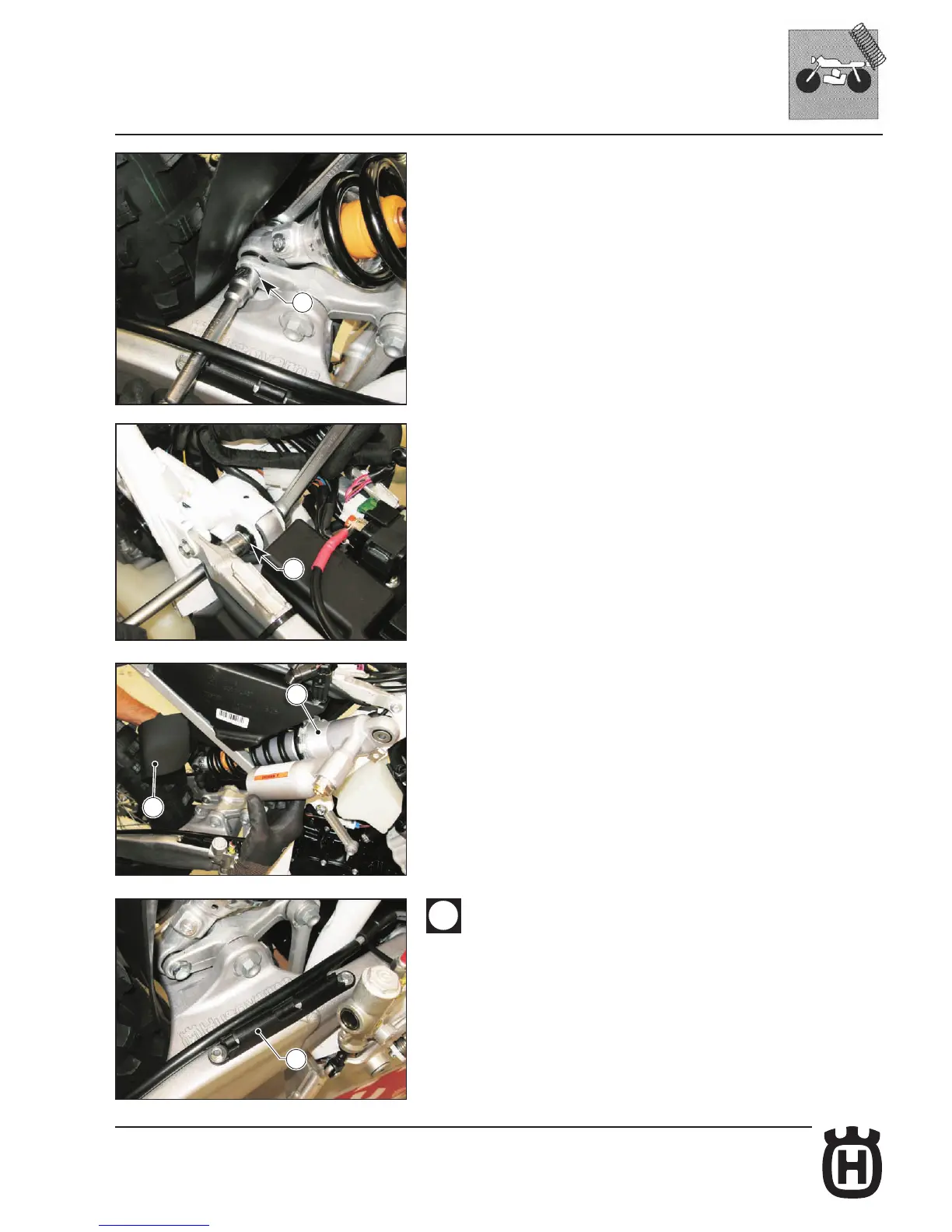

Rear shock absorber removal
- Fit a support under the engine so that the rear wheel is raised off the ground.
- Remove the saddle, the side panels and control unit as described in the cor-
responding chapters.
- Remove wiring from the top mounting point.
- Loosen lower screw (1) using two 14 mm wrenches.
- Loosen upper screw (2) using two 14 mm wrenches.
- Shift the rear cover (3) and take out the rear shock absorber (4) from the rear
right-hand side of the bike.
Upon reassembly, remove rear brake hose support (5) to insert the torque
wrench.
Tightening torque of shock absorber nuts 50 Nm - 5 Kgm - 36.88 ft-lb.
