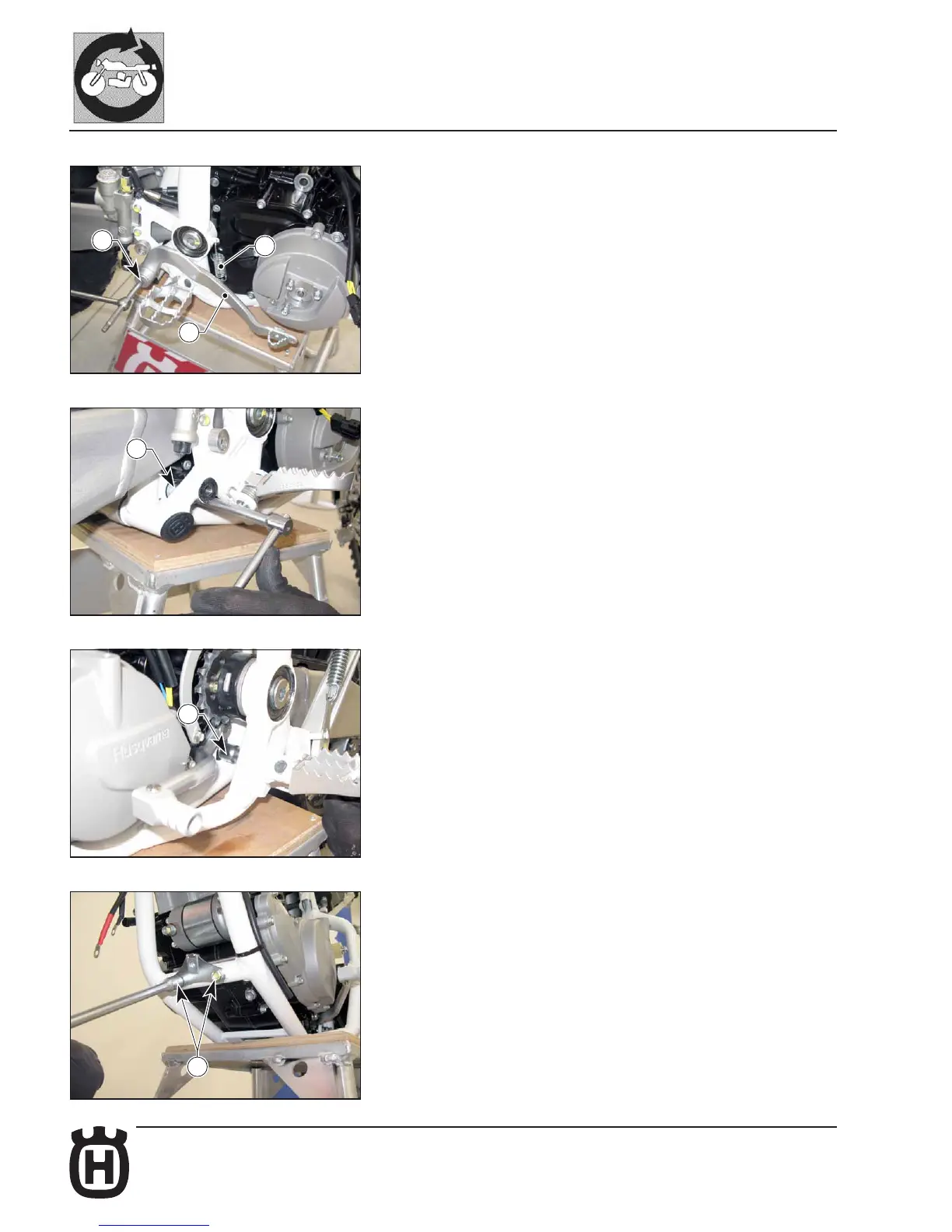

GENERAL PROCEDURES
- Remove rear brake pedal (26) by loosening screw (27) (with a 6 mm Allen
wrench), and releasing spring (28).
- Loosen rear engine mounting bolt (29) (with two 14 mm wrenches) and the
two front screws (30) (with a 12 mm wrench); engine will rest on chassis
cradle.
- Remove engine from chassis right side.
