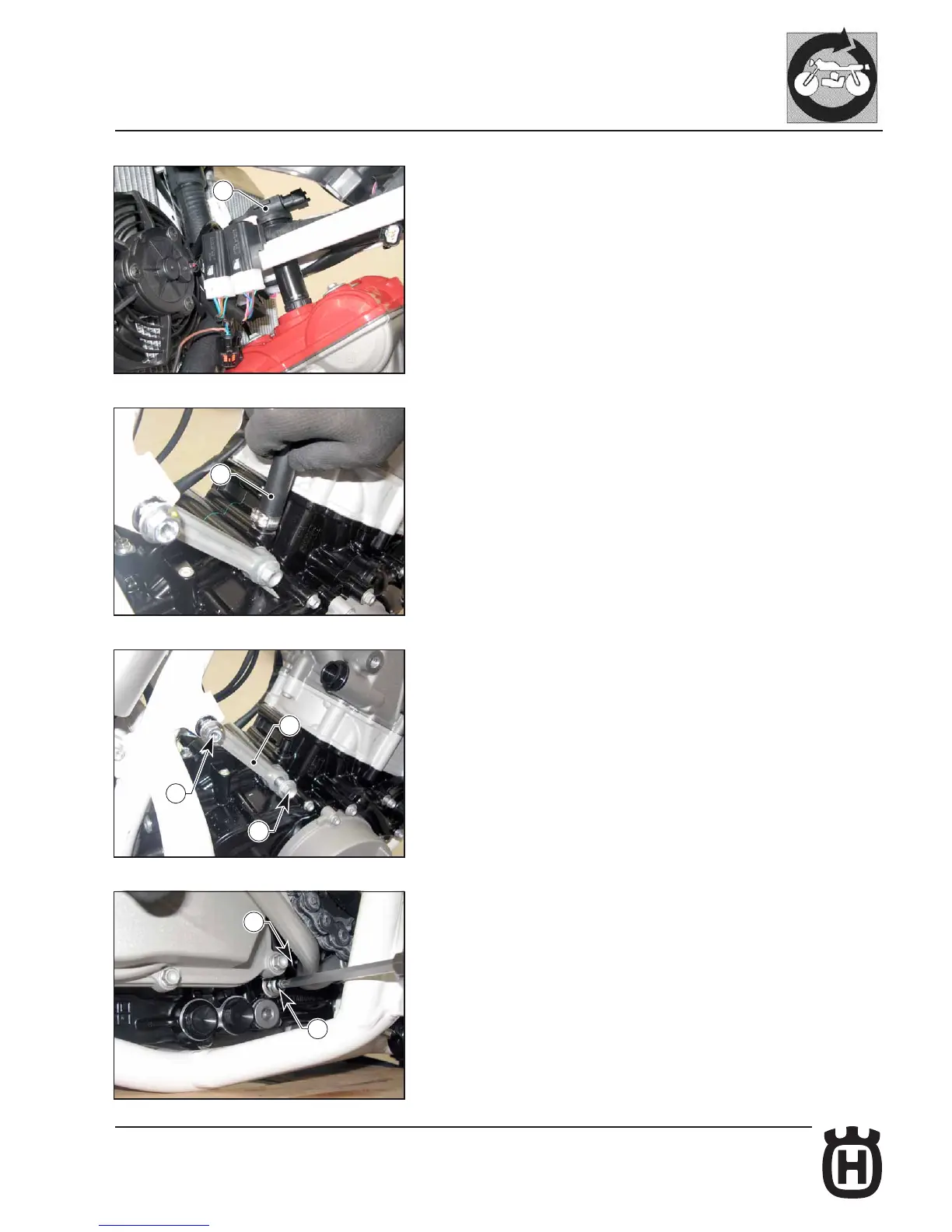

GENERAL PROCEDURES
- Turn coil (16) by 90° so that connector is pointing to bike rear end, then
remove it.
- Disconnect Blow-by hose (20).
- Loosen screw (21) and screw (22) (with a 14 mm wrench), and remove right
connecting rod (23).
- Disconnect all engine wiring harnesses.
- Loosen screw (24) and remove neutral sensor wiring harness (25).
