GENERAL PROCEDURES

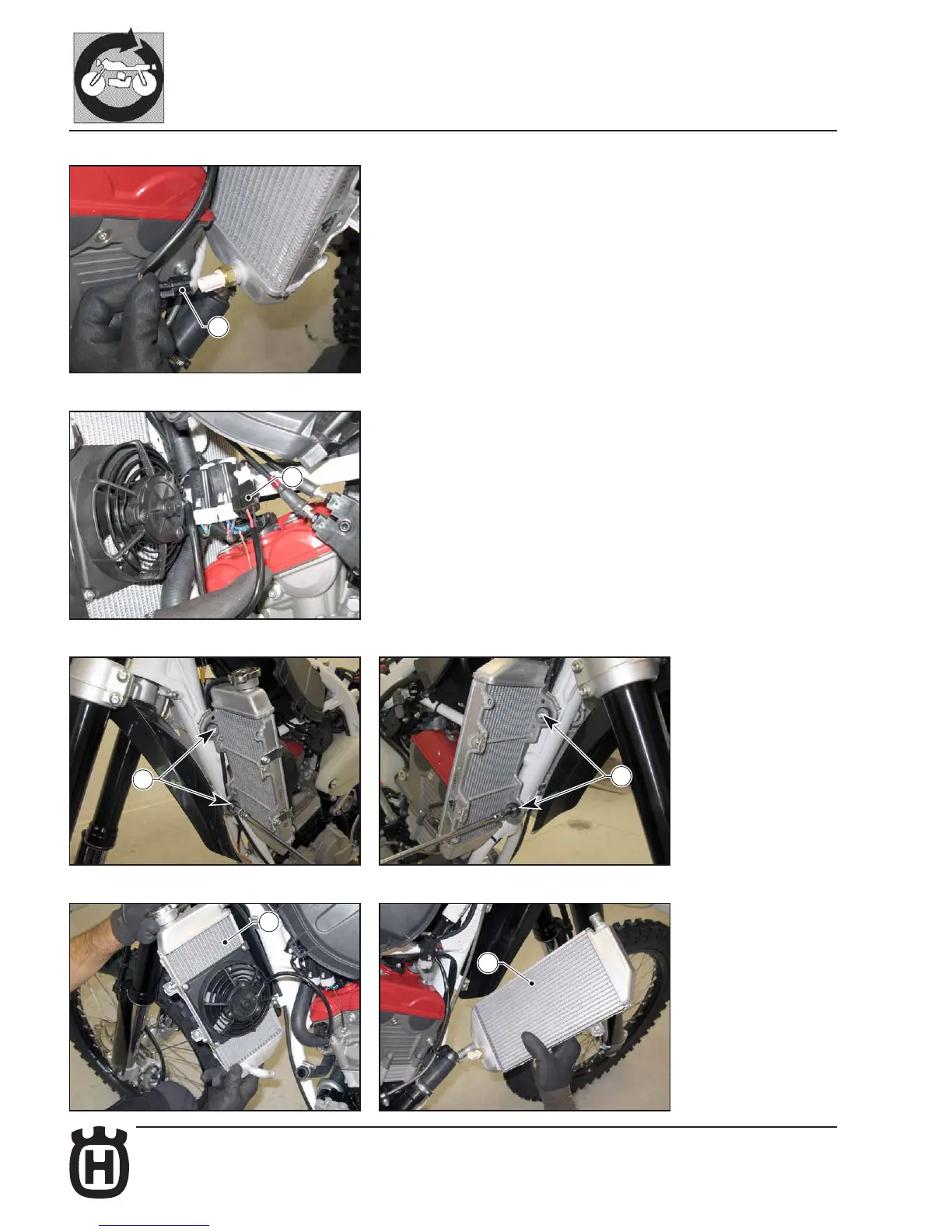

- Disconnect temperature sensor connector (3).
- Disconnect electric fan connector (4) (TE - TXC - SMR).
- Loosen the four screws (5) (with a 8 mm wrench), and remove left-hand ra-
diator (6) complete with fan (TE - TXC - SMR), and right-hand radiator (7).
