Throttle cable adjustment

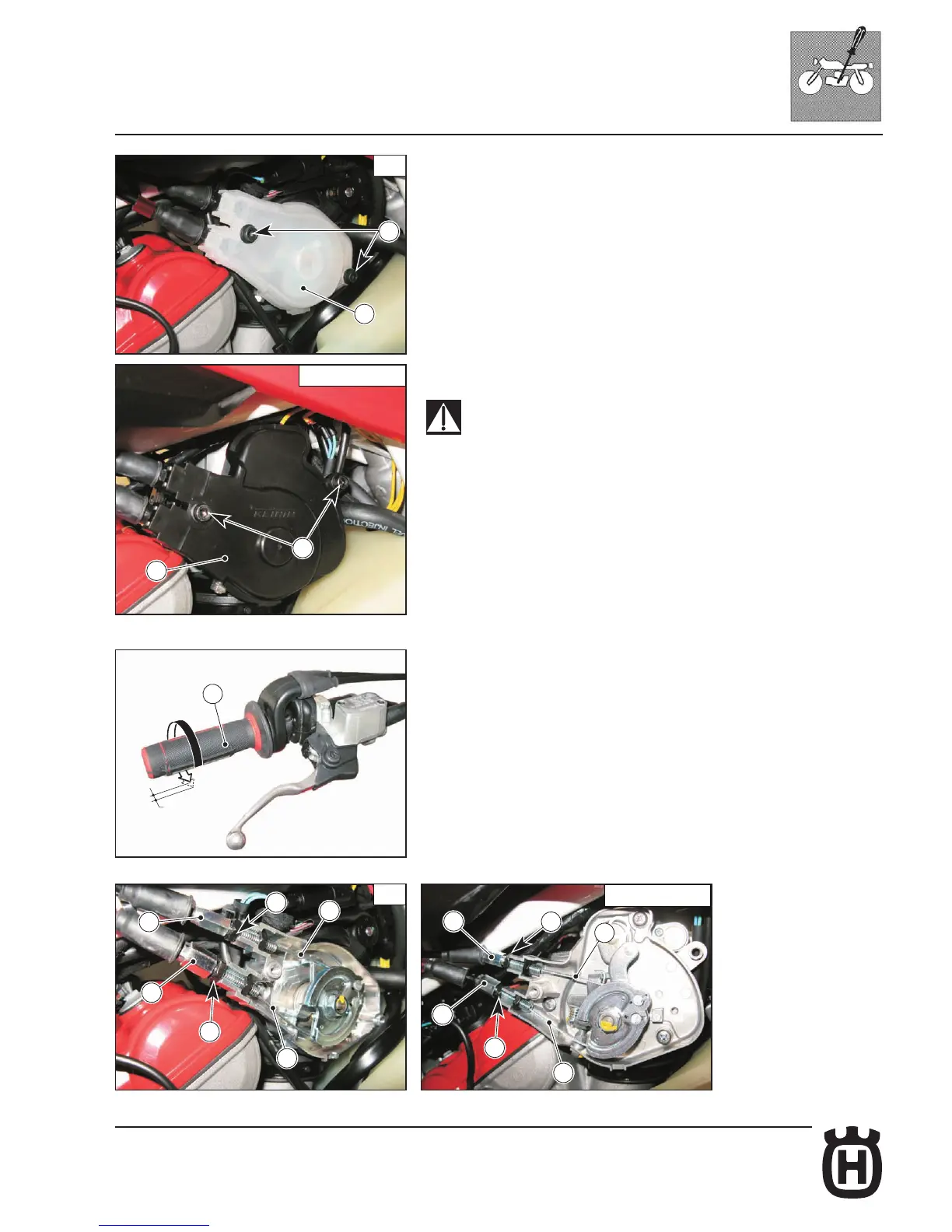

To check the correct adjustment of the throttle control cable, operate as follows:
- loosen screws (1) and remove protective cap (2);
- turn throttle twistgrip (3) and make sure that there is a clearance of approx. 2
mm (0.08 in);
- should this not be the case, loosen check nuts (4) and (5);
- turn and keep twistgrip (3) in the fully closed position;
- loosen upper "return" cable (6) using adjuster screw (7);
- keeping twistgrip (3) fully closed, reset cable (6) clearance by turning ad-
juster screw (7);
- tighten check nut (4);
- turn adjuster screw (8) until reaching an opening clearance of approx. 2 mm
(0.08 in);
- tighten check nut (5).
- reassemble all parts, in the reverse order compared to disassembly.
Operation with damaged throttle cable could result in an unsafe riding
condition.
When throttle control cables (6) and (9) are replaced, adjust new cables as
previously explained.
