ELECTRICAL SYSTEM
1
st
edition (08-2010)_Rev. 11-2010

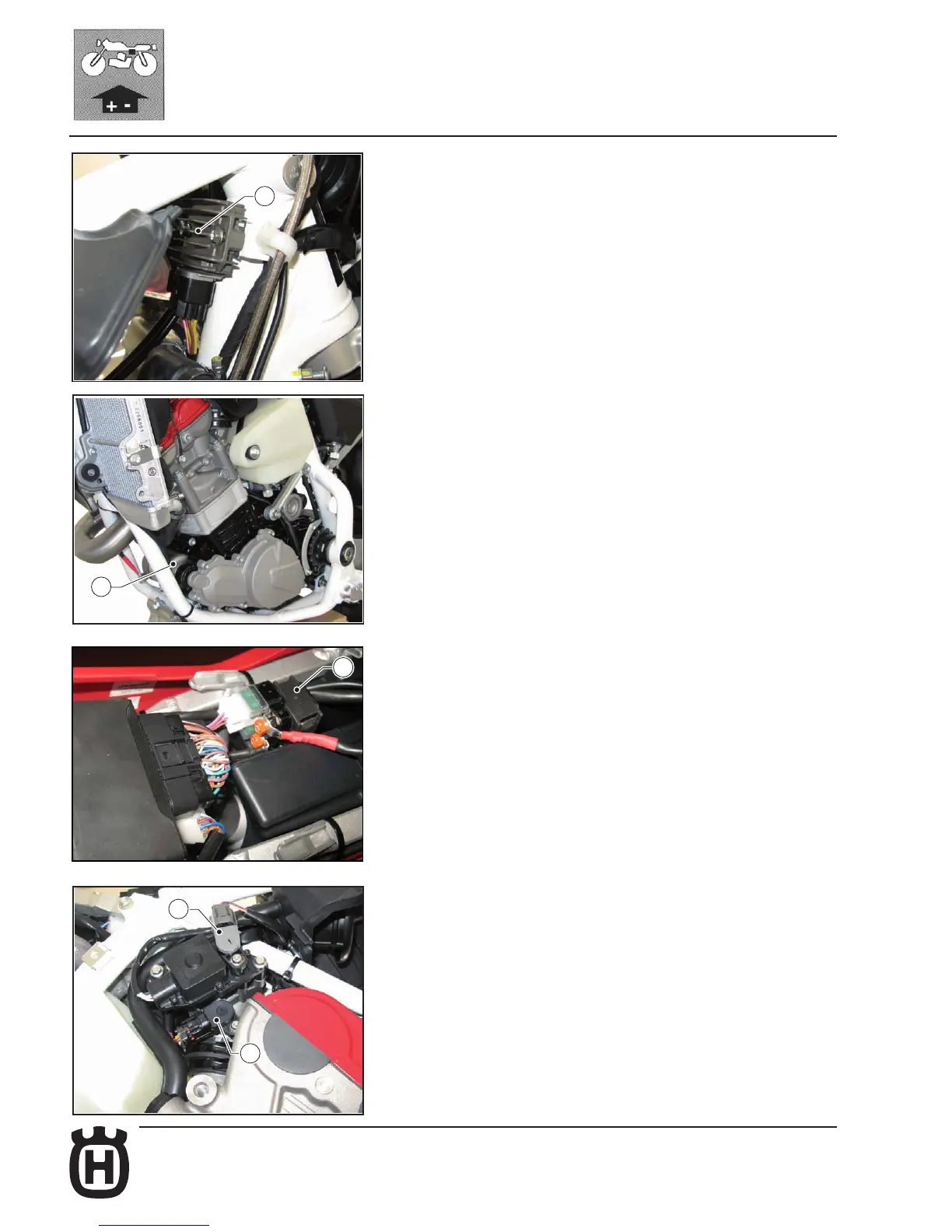

- Voltage regulator (4) located at the back of the steering tube.
- Starter motor (5) in front of engine cylinder;
- Solenoid starter (6) positioned under saddle, on rear chassis;
- Potentiometers (7) and (8) on throttle body;
(7) = 2
nd
throttle
(8) = 1
st
throttle
