ELECTRICAL SYSTEM
1
st
edition (08-2010)_Rev. 11-2010

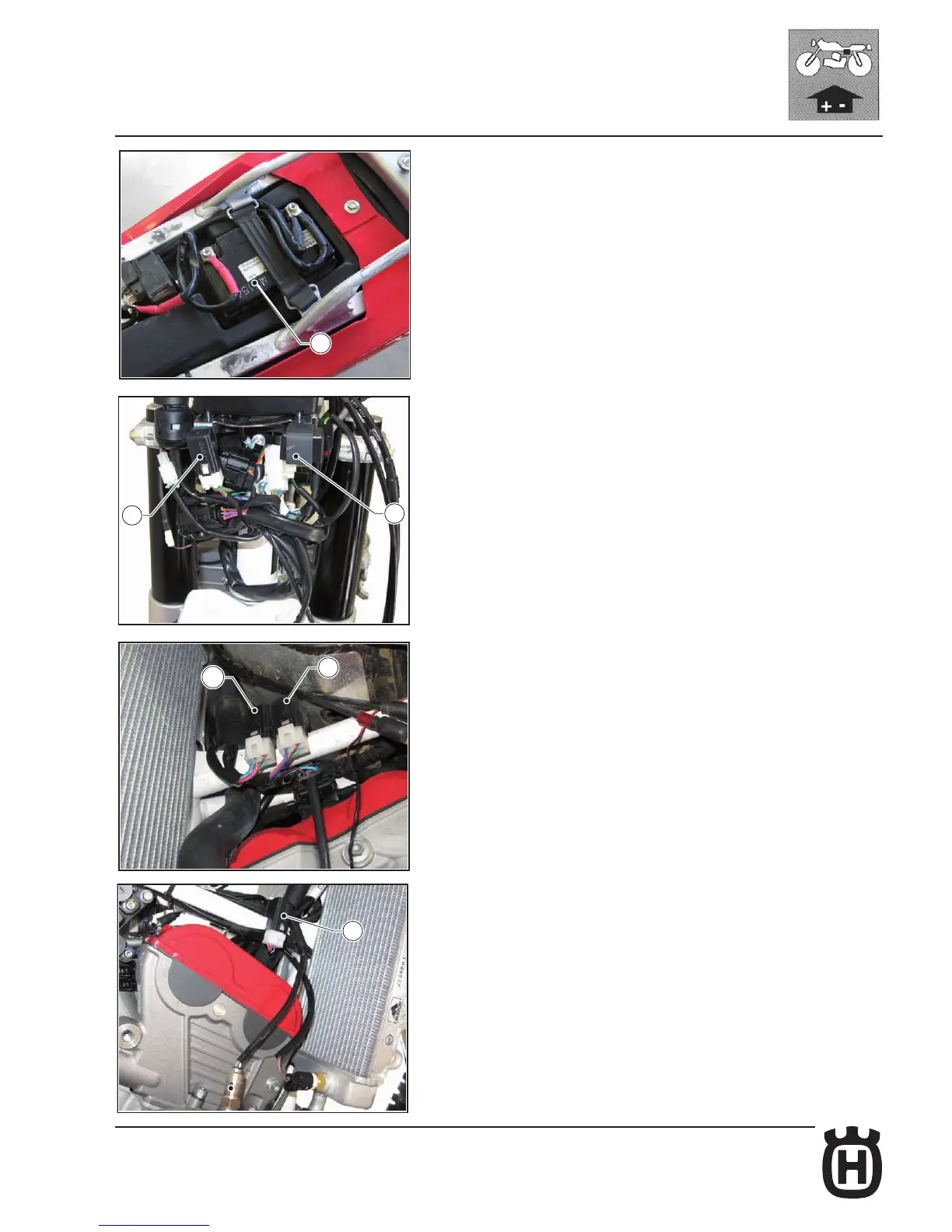

The electrical system includes the following elements:
- 12V - 6Ah Battery (9) under the saddle;
- Turning indicator asher (10) at the front end, below the headlamp fairing;
- Light relay (11);
- Fuel pump relay (12) and main relay (13) positioned on the front left side,
under the air box;
- Electric fan relay (14), on the right side, under the air box;
