ELECTRICAL SYSTEM
1
st
edition (08-2010)_Rev. 11-2010
- Starter motor (5) in front of engine cylinder;
- Solenoid starter (6) positioned under saddle, on rear chassis;
- "MAP. SENSOR" (7) sensor on throttle body;

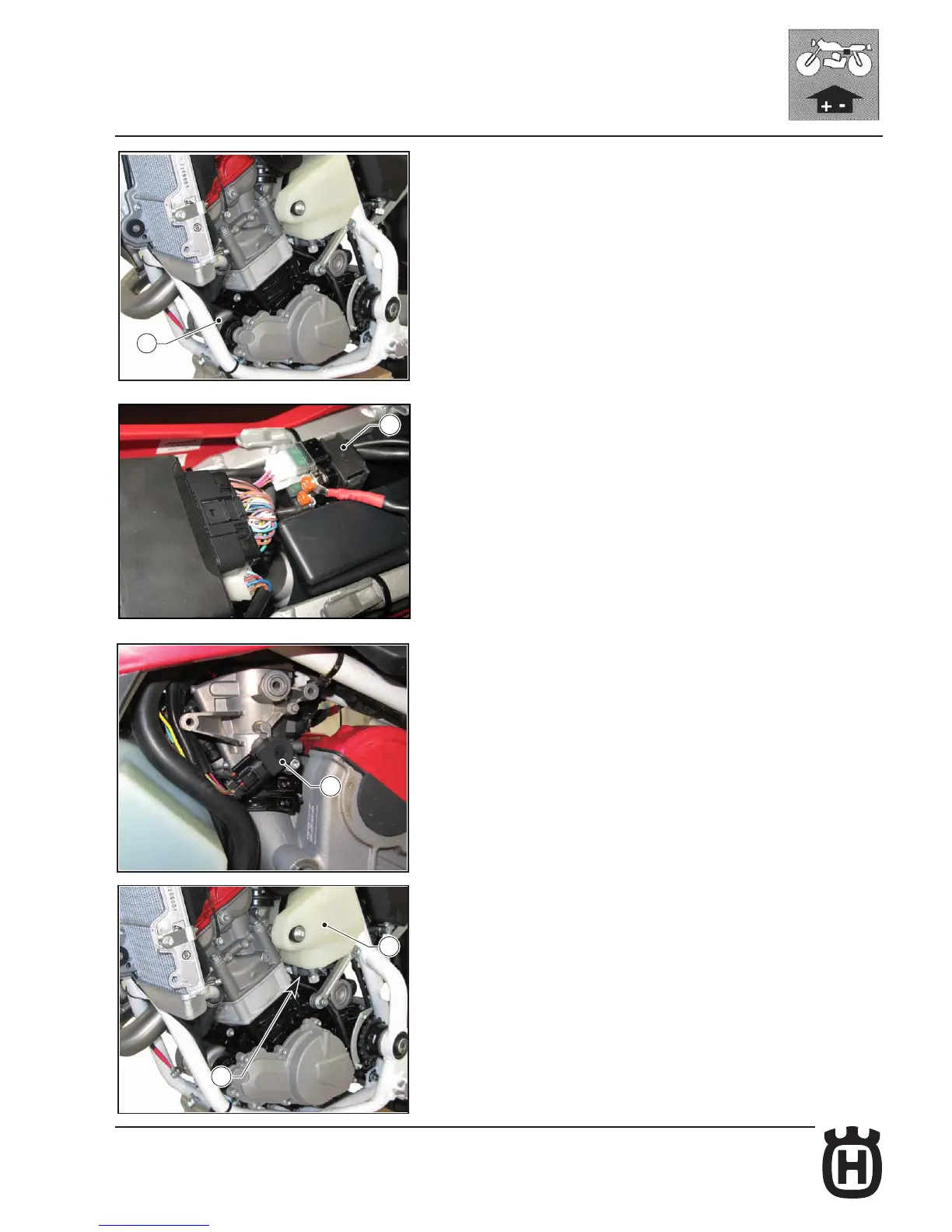

The electrical system includes the following elements:
- Fuel pump (8) positioned inside the tank (9);
