Gear selector lock replacement
Preliminary operations
Clutch cover disassembly
Removing clutch pressure plate
Removing clutch plates
Clutch hub disassembly
Clutch housing disassembly
Coolant pump cover disassembly
Coolant pump rotor disassembly
Engine right crankcase cover disassembly

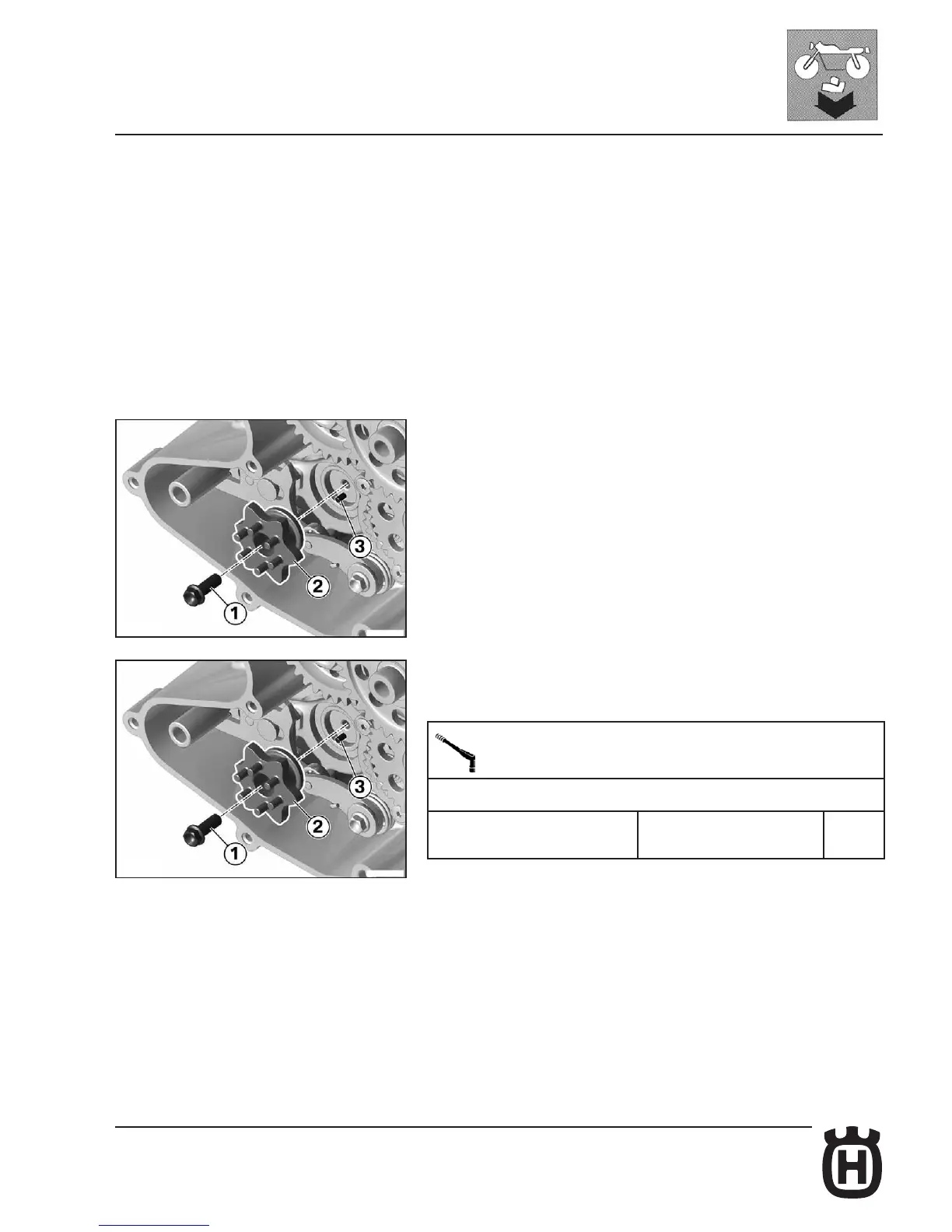

Gear selector disassembly
• Remove gear selector lock, and secure it using a suitable auxiliary tool.
• Remove screw (1).
• Remove gear selector (2) with reference pin (3).
• Remove gear selector lock retainer.
Gear selector assembly
• Remove gear selector lock, and secure it using a suitable auxiliary tool.
• Fit gear selector (2) with reference pin (3).
• Fit screw (1).
Tightening torque gures
Gear selector on selector drum
M6 x 16, Microincapsulated screw
replacement
11 Nm
• Remove gear selector lock retainer.
