Husqvarna TE511 - Page 71

E.13
H02435
9
H02436
H02437
10
H02438
11
13
12
1
st
edition (08-2010) _Rev. 11-2010

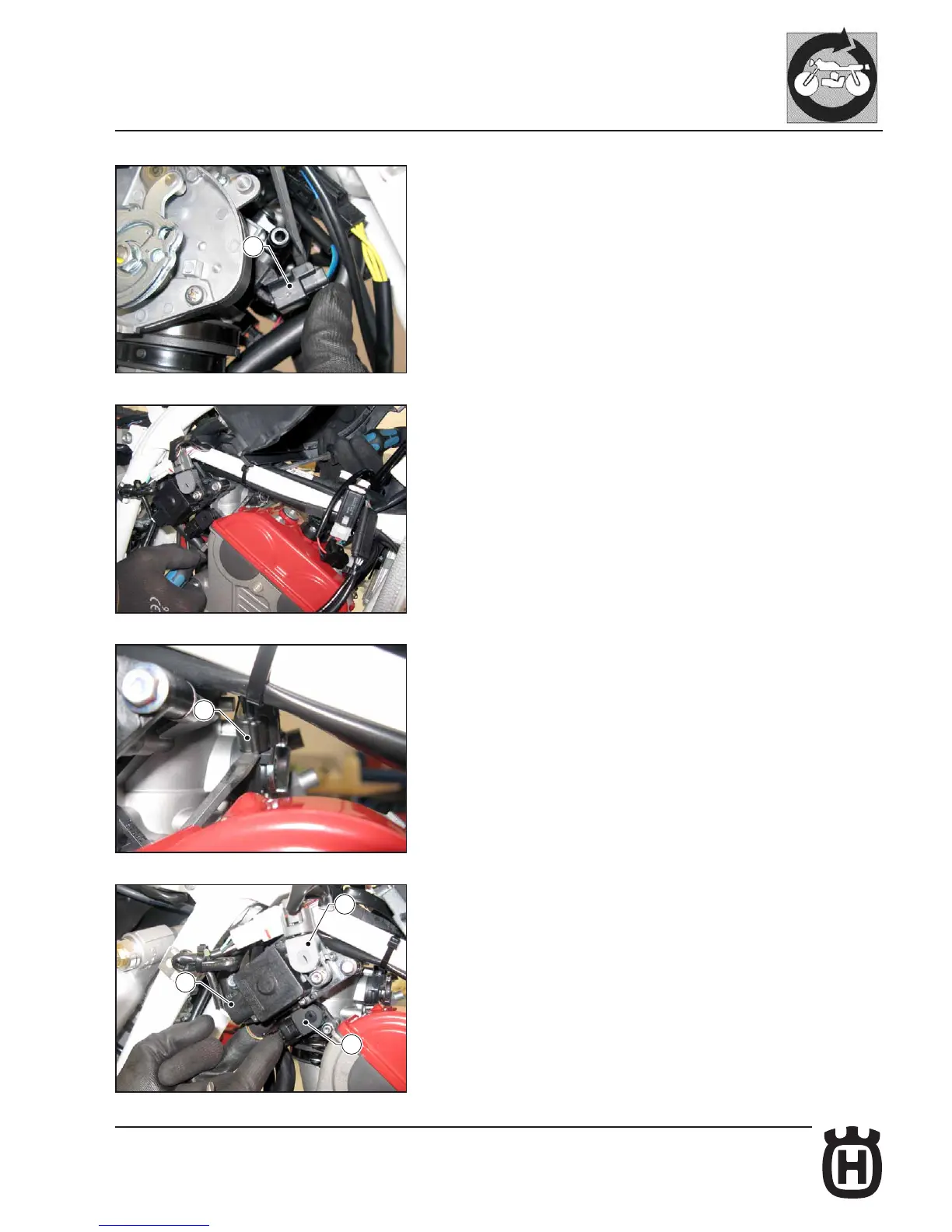

GENERAL PROCEDURES
- Disconnect injector connector (9).
- Detach the pressure sensor (10).
- From the right side:
TE - TXC - SMR;
remove second throttle connector (11), second throttle TPS connector (12),
and TPS connector (13).
