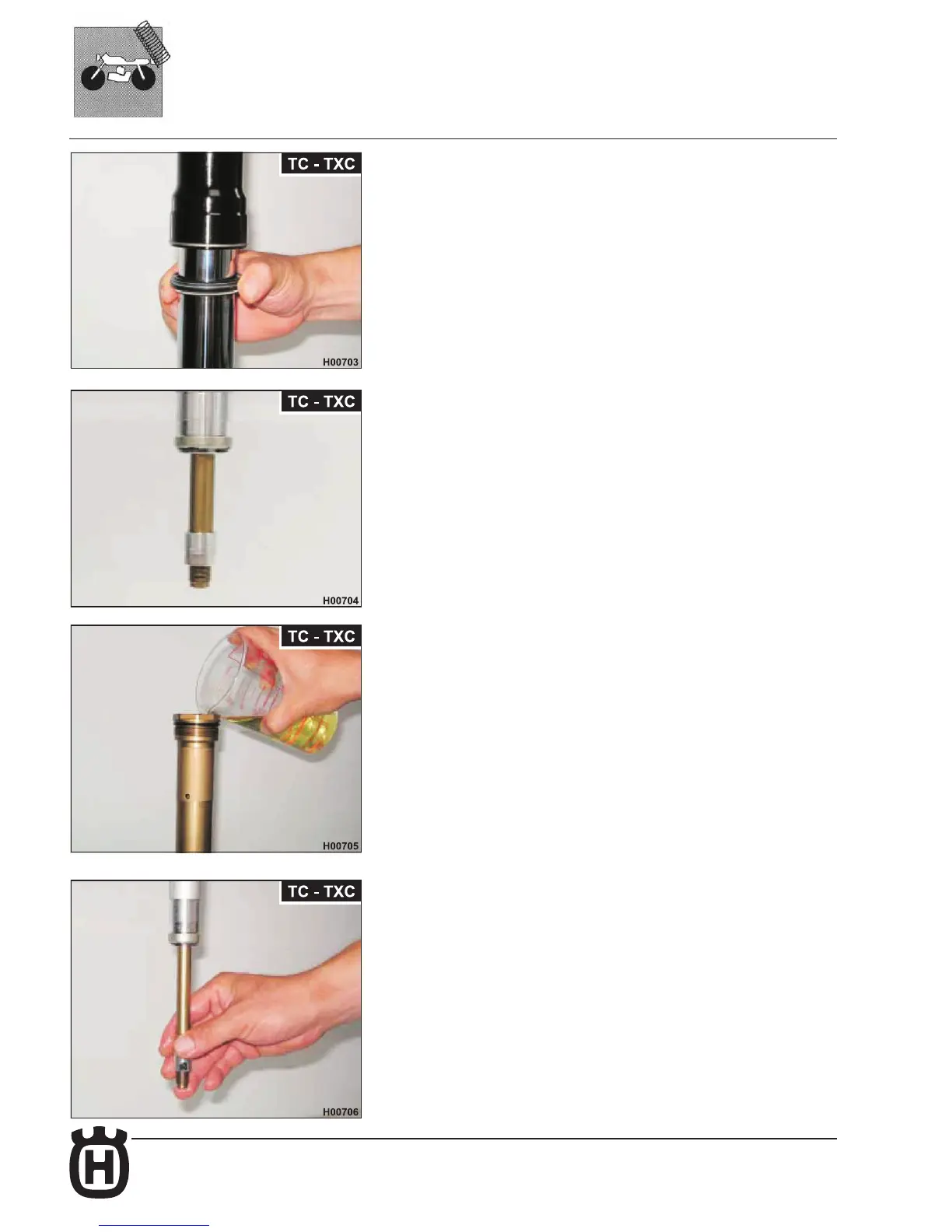

Fit the dust seal to the outer tube.
Make sure that there is not play between dust seal and outer tube.
Ret the cartridge.
Tighten the nut all the way onto the rebound adjuster rod.
Make sure rebound adjuster rod thread length is at least 15 mm (0.6 in.).
Fill the cartridge with the specied oil.
Pump the piston rod up and down repeatedly to remove any air from the cyl-
inder.
