REAR SUSPENSION

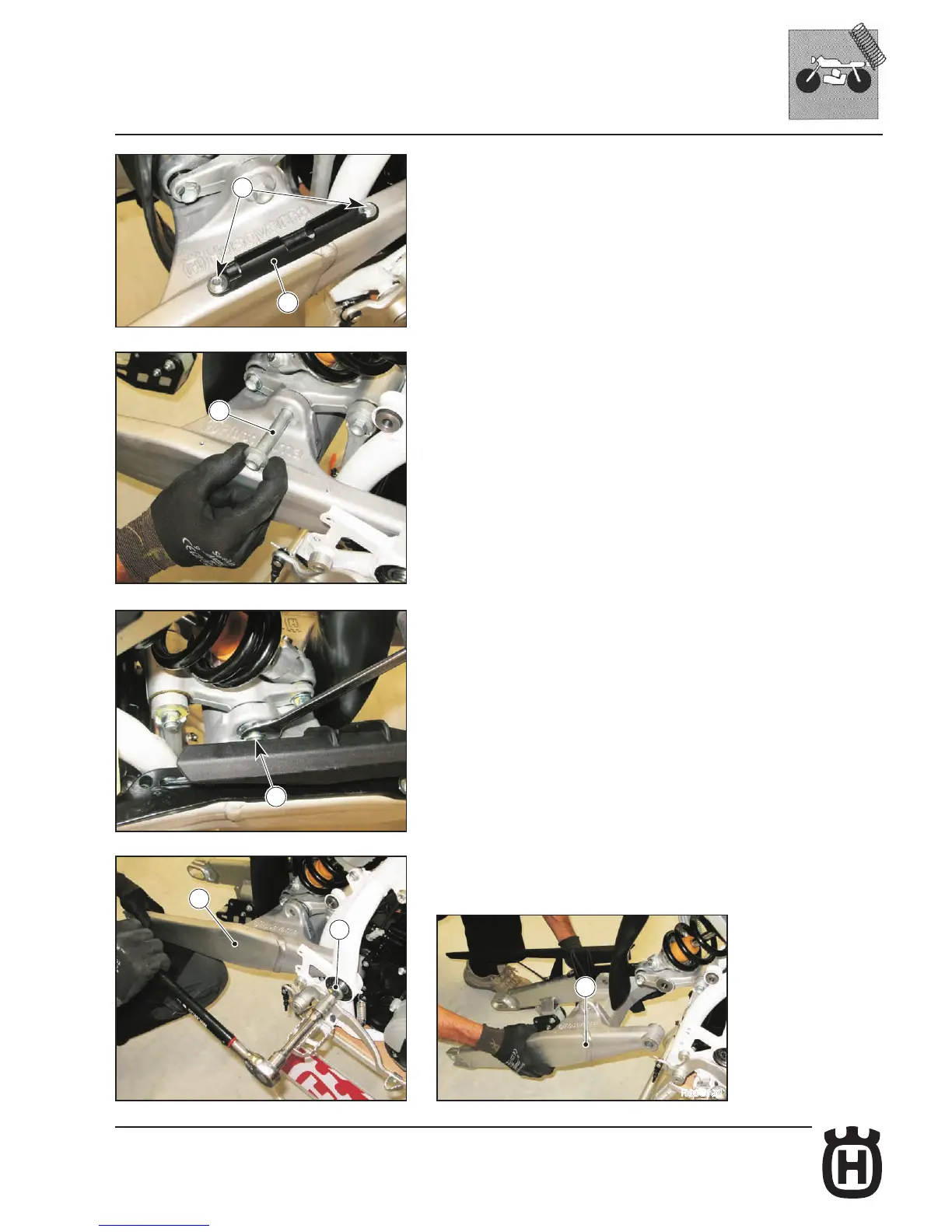

- Loosen the two screws (5) using an 8 mm wrench, and remove rear brake
hose support (6) to slide out the pin (7).
- Using a 17 mm wrench, loosen nut (8) and remove pin (7) on the other side.
- Using a 10 mm Allen wrench, loosen pins (9) and remove swinging arm (10).
