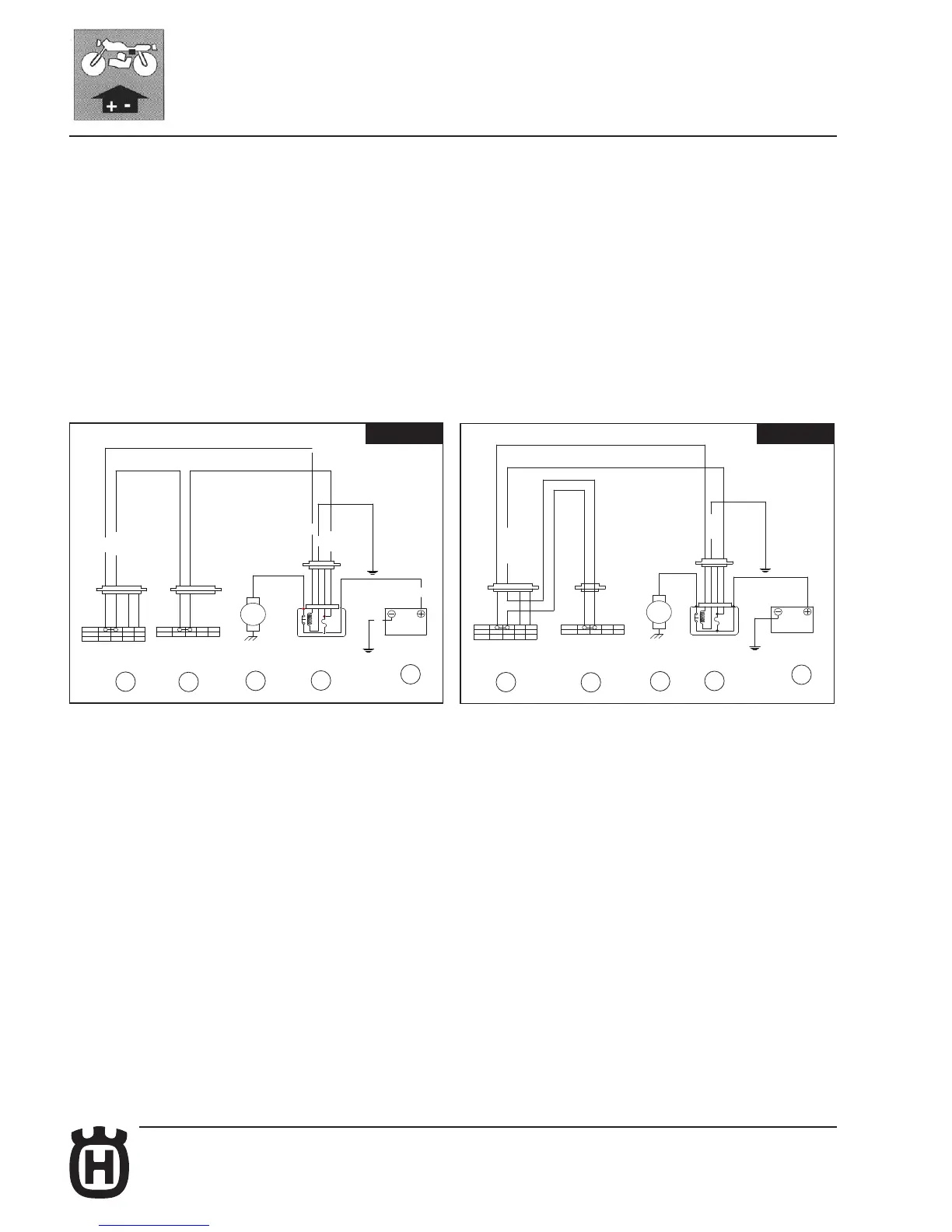

ELECTRIC STARTING SYSTEM
The starting system is composed of:
- Battery (1);
- Solenoid starter (2);
- Starter motor (3);
- R.H. switch (4);
- Clutch microswitch (5) (TC - TXC);
- Ignition switch (6) (TE - SMR);
For a description of wires and components, please see the key to the
wiring diagram
Colour coding key (TE - SMR)
Gr .................. Grey
Y ................... Yellow
Sb ................. Sky blue
G ................... Green
R ................... Red
B ................... Blue
