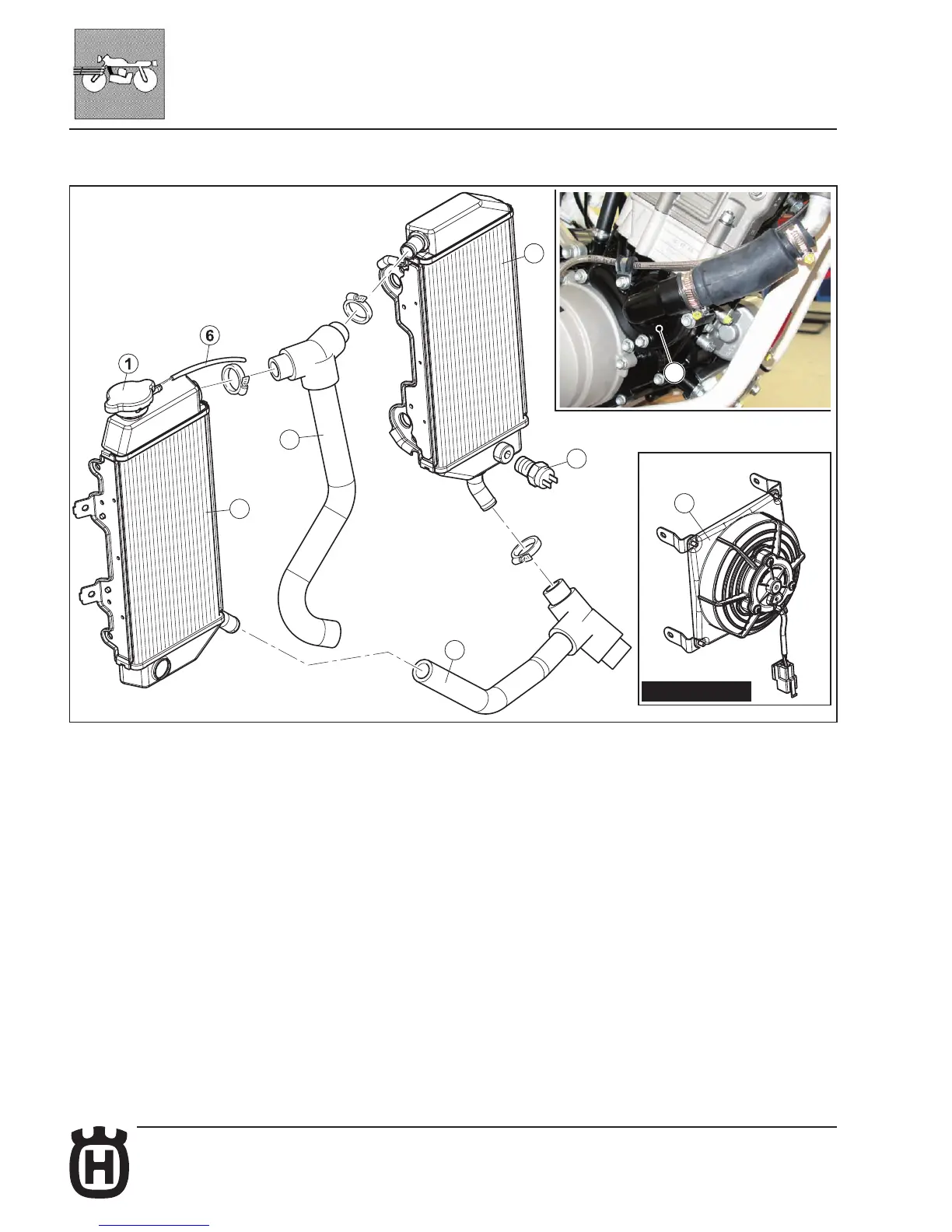

Cooling circuit
The forced circulation cooling system uses a centrifugal pump (located to the
left of the head) and two down-draft radiators.
1 Radiator cap
2 Right-hand radiator
3 Left-hand radiator
4 Water temperature sensor
5 Water pump
6 Breather hose
7 Cylinder head / radiator connection pipe
8 Water pump / radiator lower pipe
9 Cooling fan (TE - TXC - SMR)
