3.8 I/O Signals
A3-102
ME0384-4A
Chapter 3 Gateway Unit
Specifications Section

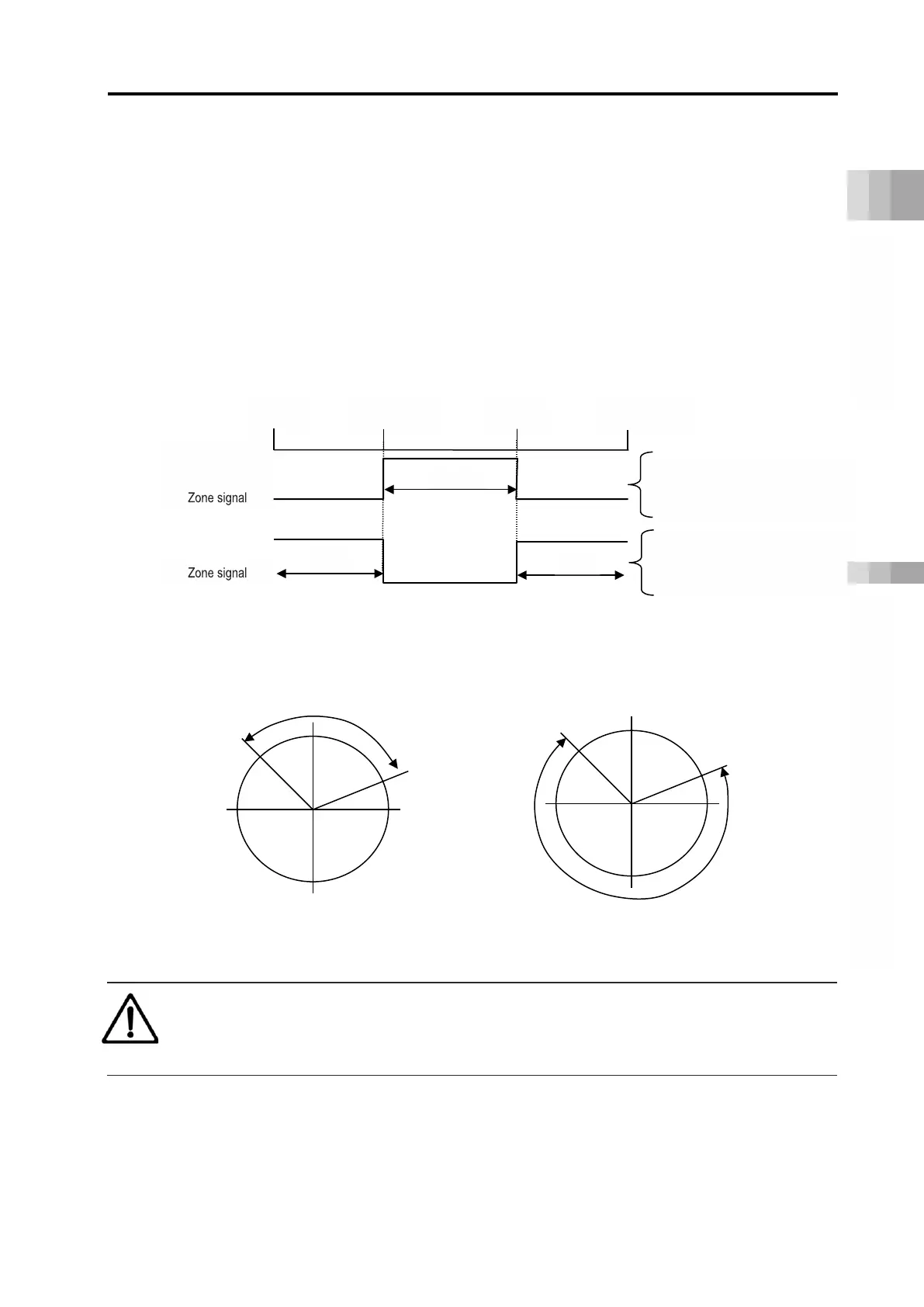

(3) Set value and signal output range
The zone output range varies depending on the difference between the set value on the + side
and - side of the zone.
(1) + side set value > - side set value: zone signal ON within the range of - side set value to +
side set value, OFF when out of range
(2) + side set value < - side set value: zone signal OFF within the range of + side set value to -
side set value, ON when out of range
[For linear axis]
[For rotary actuator of multi-rotation specification in index mode]
Caution
● This signal is enabled after home return is completed. It will not be output only by
turning on the power.
30mm
70 mm
100 mm
Present position
ON
ON
ON
Set value
Zone setting + side : 70 mm
Zone setting – side : 30mm
Set value
Zone setting + side : 30 mm
Zone setting – side : 70mm
0mm
0°
315°
0°
315°
70°
Set value
Zone setting + side : 70°
Zone setting – side : 315°
Set value
Zone setting + side : 315°
Zone setting – side : 70°
70°
