(4) If push direction is set incorrectly

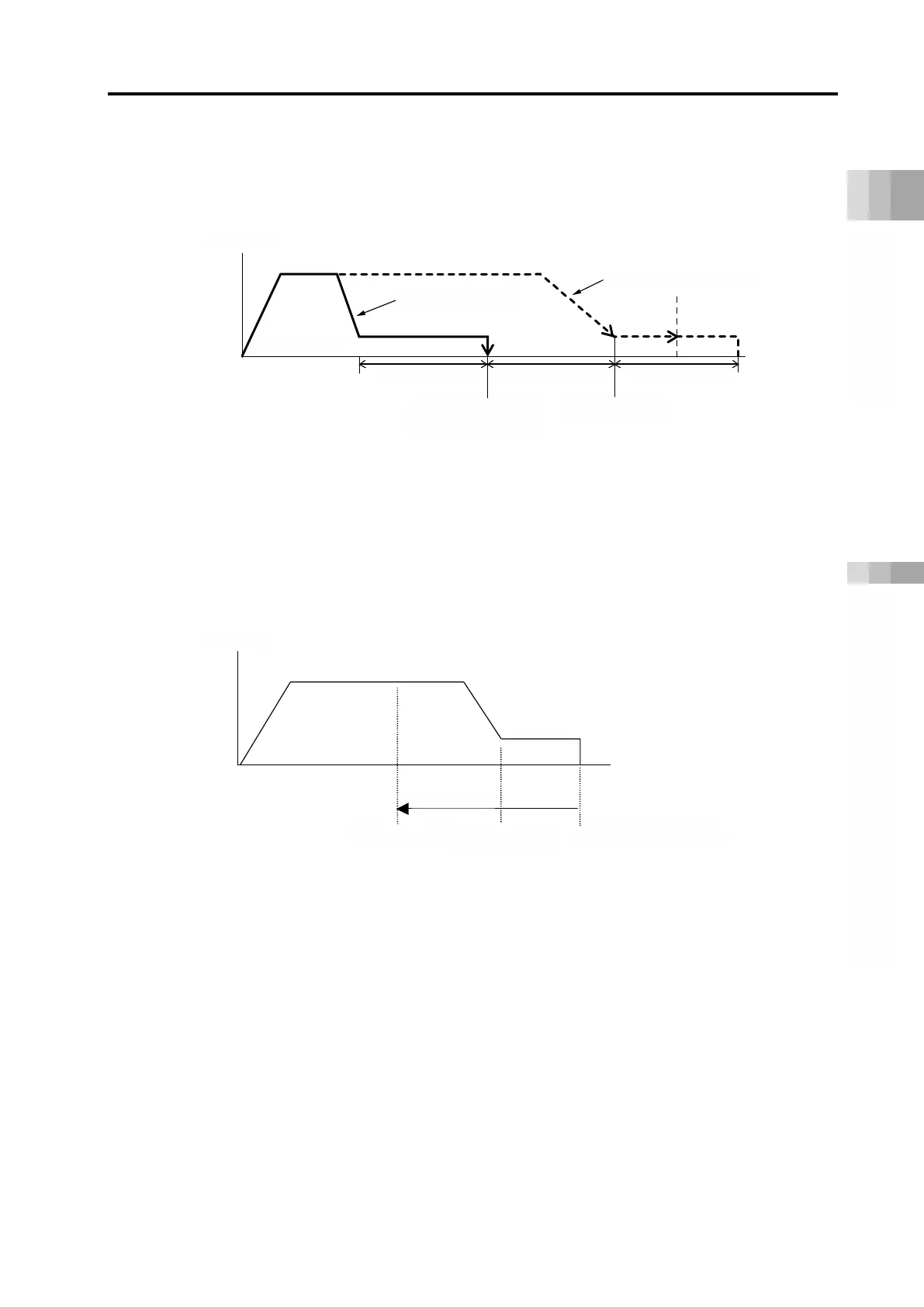

If the push direction is set incorrectly, be careful as it will be displaced by (positioning width x 2)
as shown below.
(5) If return after pushing is performed by relative coordinate specification
Be aware that for relative coordinate specification, the reference position is the target position of
the position No. that pushed, not the current position where pushing has stopped after
completion.
In this example, if you set the position No. to -40 mm of the relative coordinate, it will move to
the position 280 - 40 = 240 mm. However, if pushing is specified, it will move relatively from the
stop position.
(contactless)
operation
Positioning
Target position
Speed
