6-46 ELECTRICAL SYSTEM / BILGE PUMP
ICON A5 / MAINTENANCE MANUAL CHANGE C2
CHAPTER 6

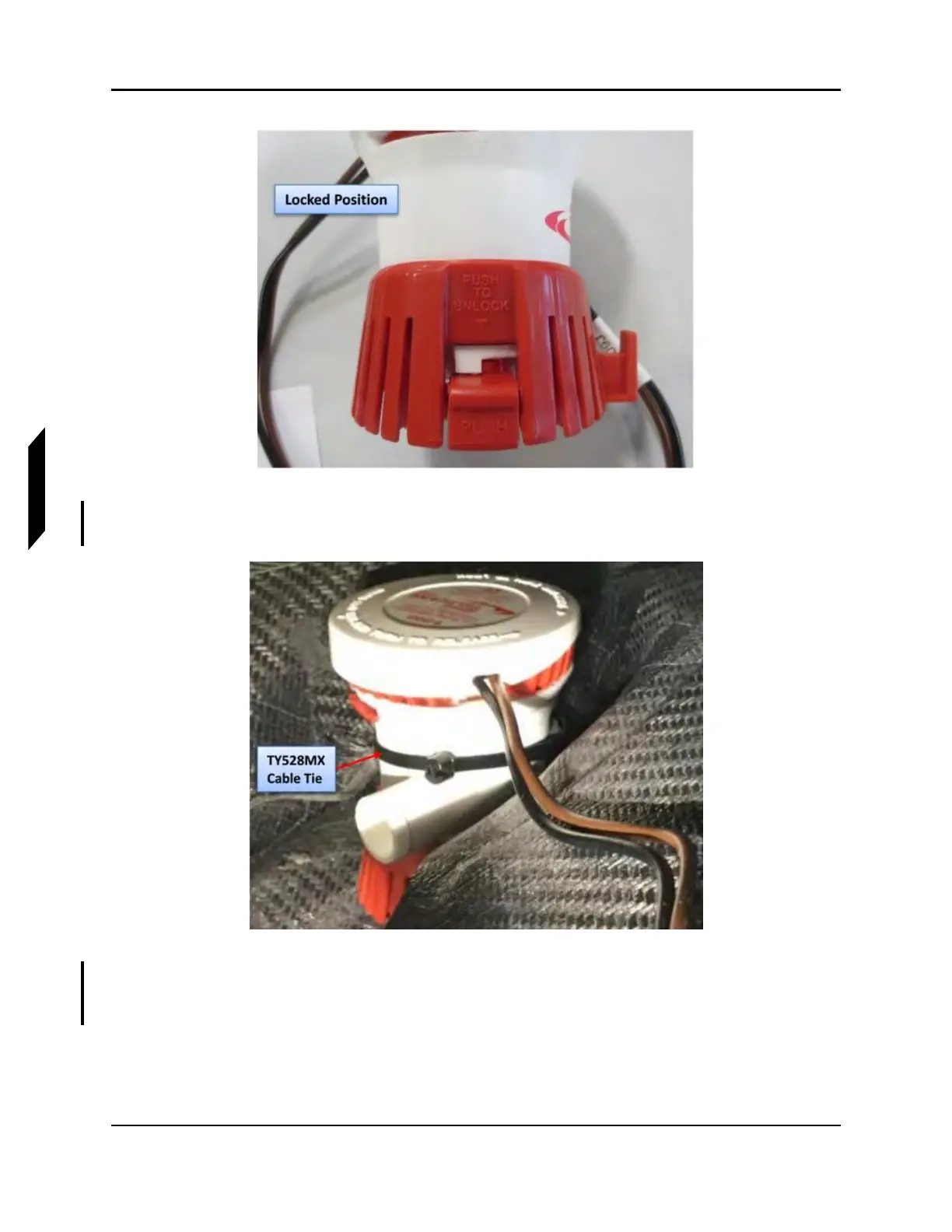

FIGURE 6-7
LOCK BOTTOM STRAINER
5. Secure the pump to the mounting flange with a TY528MX cable tie as shown. (See Figure 6-8.)
FIGURE 6-8
SECURE THE PUMP TO MOUNTING FLANGE
6. Apply Sil-Poxy adhesive around the mounting flange, completely covering the cable tie as shown.
(See Figure 6-9.)
