ELECTRICAL SYSTEM / BILGE PUMP 6-51
CHANGE C2 ICON A5 / MAINTENANCE MANUAL

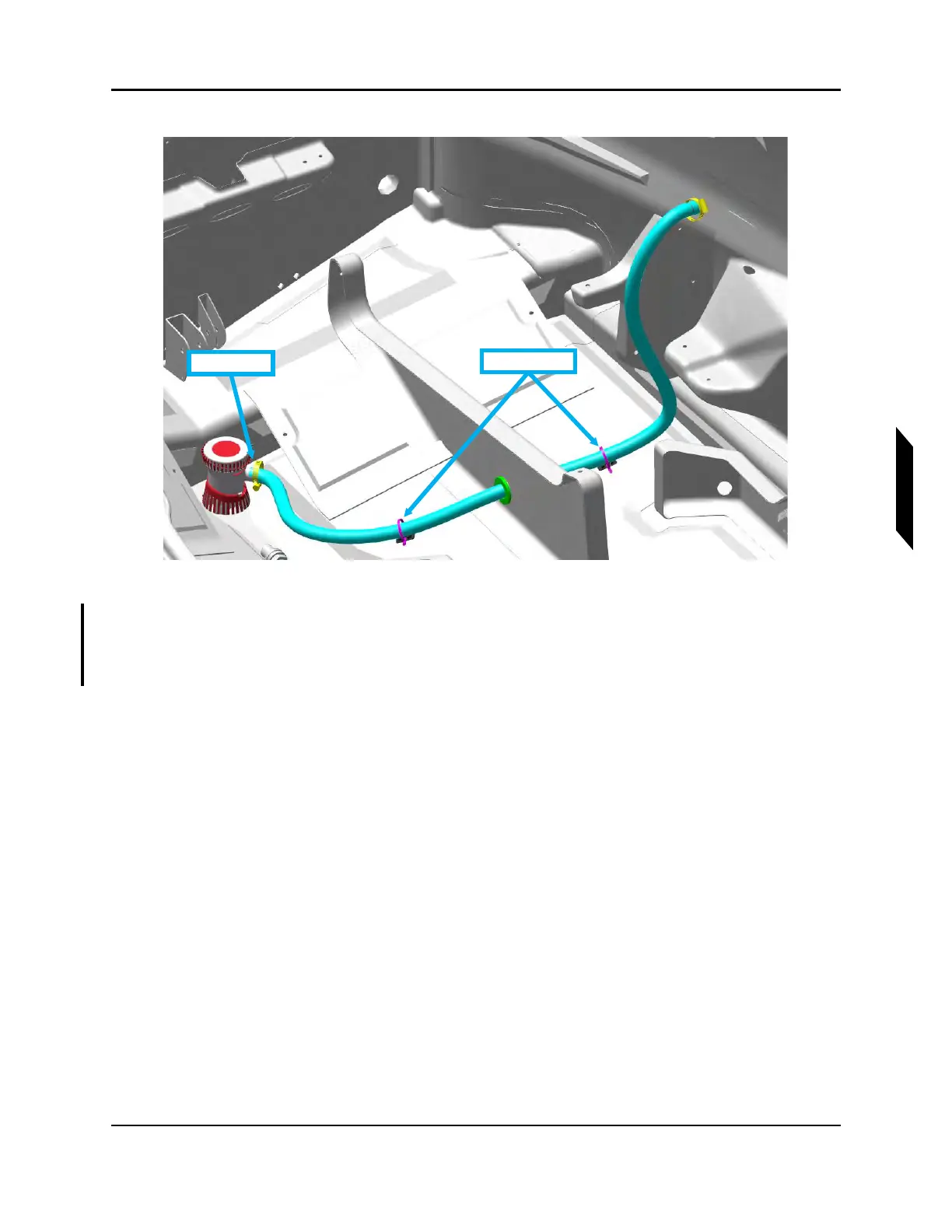

FIGURE 6-11
SECURE BILGE PUMP HOSE
5. For the clamp on the bulkhead fitting in the pilot side fuselage skin, clock the clamp such that the
screw housing is fully within the following approximate zone, make sure there is a minimum clear-
ance of .125” from the fuselage roll control cable. Tighten clamps until a seal is achieved.
