ICON A5 - Page 266

9-30 FLIGHT CONTROLS / ROLL CONTROLS
ICON A5 / MAINTENANCE MANUAL CHANGE C3
CHAPTER 9

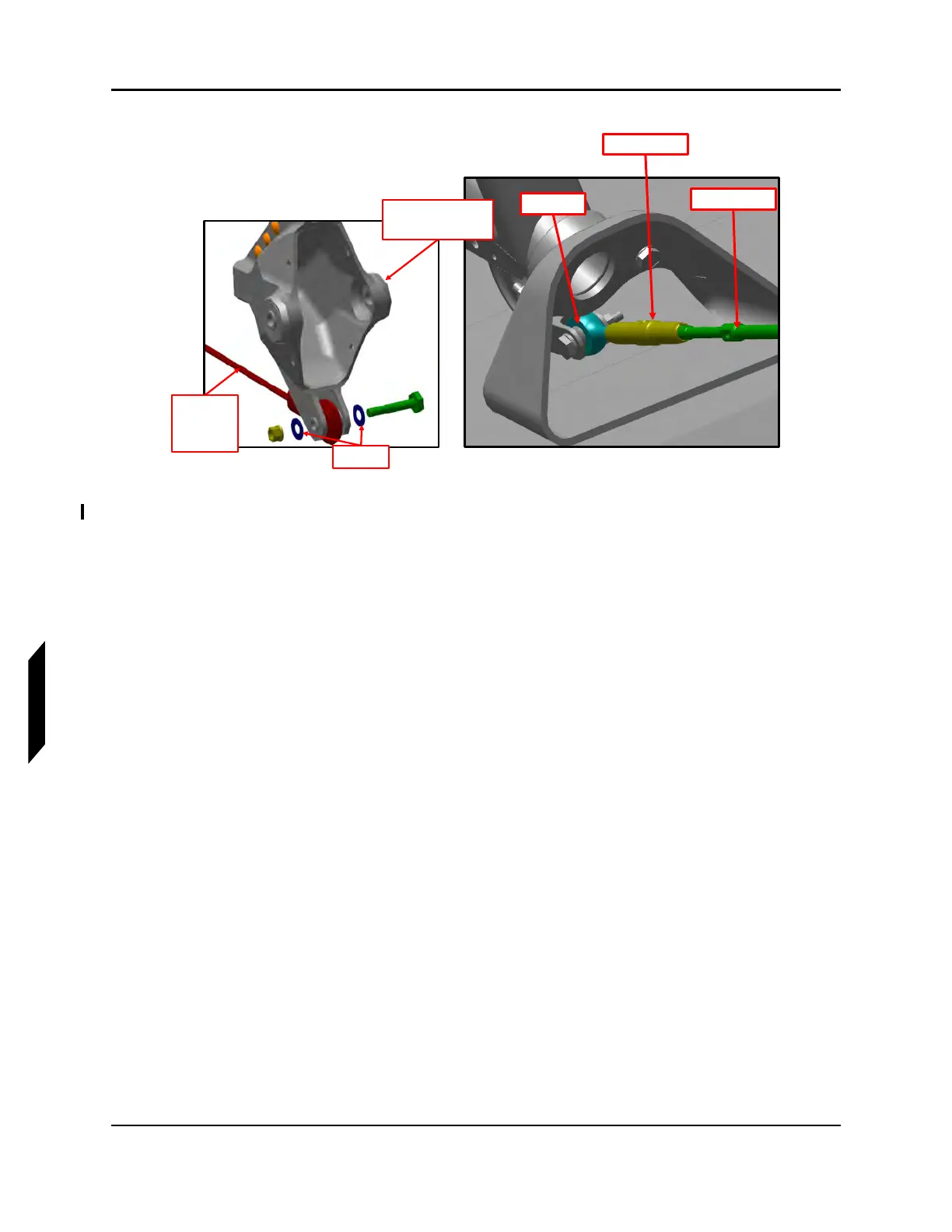

FIGURE 9-22
ROLL SOCKET AND TORQUE TUBE CONNECTION POINTS
8. There are two methods to remove the cable from the aircraft, either are acceptable:
a. Remove the three pully pivot bolts
b. Remove the two safety pins on each pully bracket.
9. Remove the worn lower roll cable from the aircraft.
Turnbuckle
Control cable
Rod end
Lower
control
cable
Washer
Roll socket LH
(RH OPPOSITE)
