FLIGHT CONTROLS / ROLL CONTROLS 9-31
CHANGE C3 ICON A5 / MAINTENANCE MANUAL

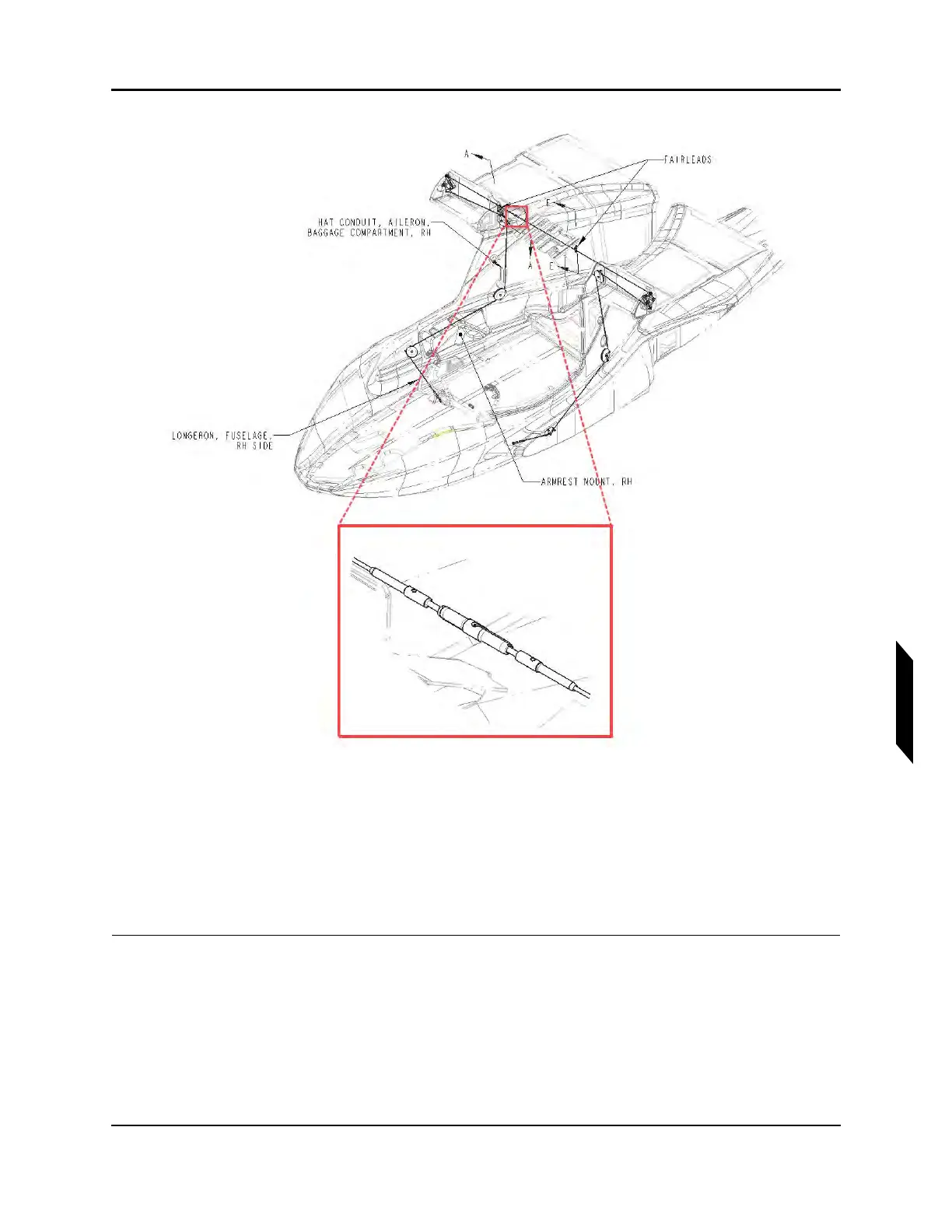

FIGURE 9-23
LOCATION OF UPPER ROLL CABLE TURNBUCKLE
To Remove Upper Roll Cables:
10. De-tension the upper roll cables by removing the safety pins from the turn buckle.
11. Disconnect the upper roll cable at the roll socket and the turnbuckle. Ensure that the cable is held
while disconnecting the turnbuckle.
12. Carefully slide the two parts of the old cable out of the aircraft.
VERIFICATION METHOD:
Damaged cables have been successfully removed and aircraft is ready for installation of replacement
roll cable(s).
