FLIGHT CONTROLS / YAW CONTROLS 9-93
CHANGE C3 ICON A5 / MAINTENANCE MANUAL

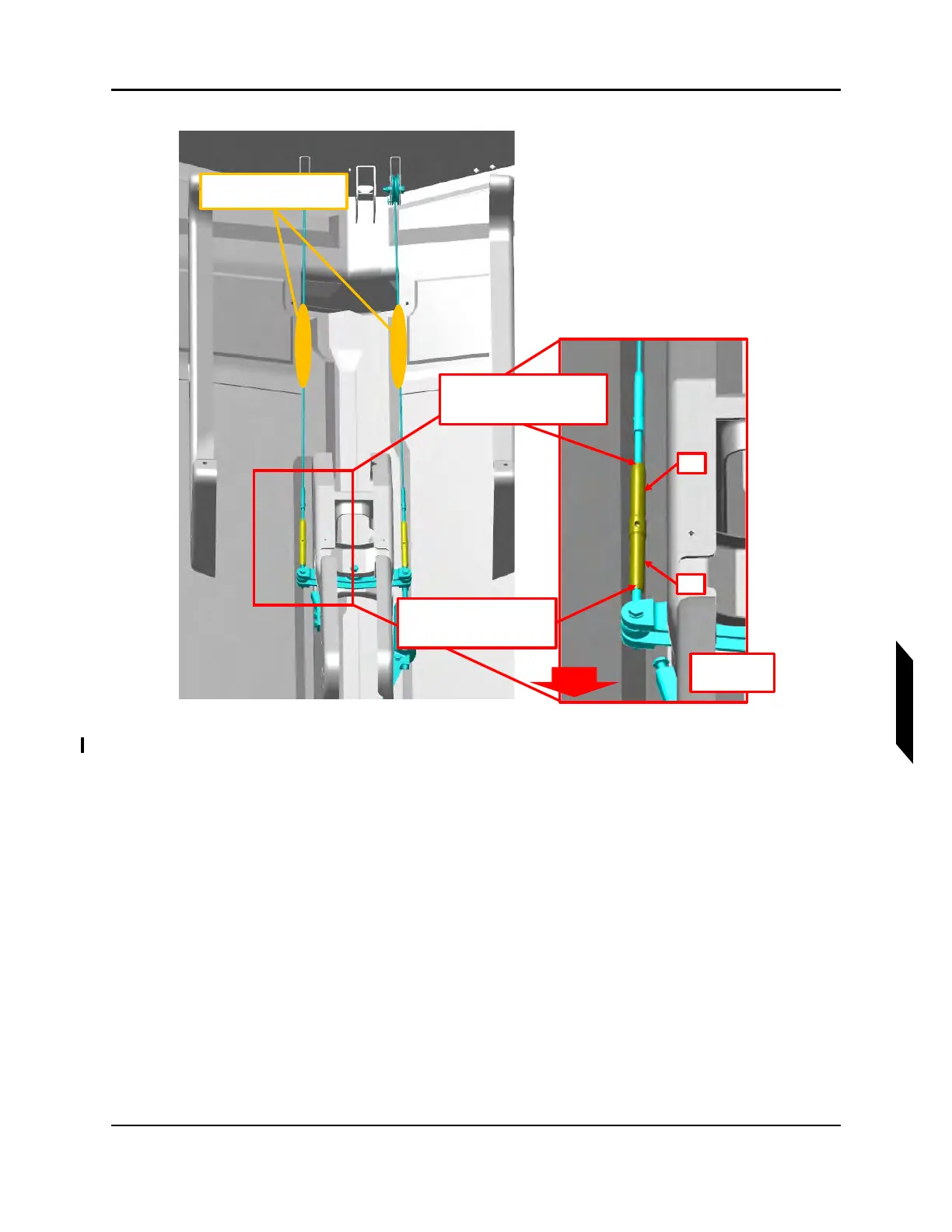

FIGURE 9-58
AFT YAW CIRCUIT TENSIONING
14. Install the forward end of centering spring onto the LH side of the keel using LOCTITE
®
243™
and the noted hardware. Torque hardware to 10-13 in-lbs. See Figure 9-59.
Locate Tensiometer Here.
Set tension to 18-22 lbs
Clip
RH SHOWN
LH OPPOSITE
Clip
FWD
Ensure no more than 3 threads
are exposed on cable terminal
after adjustments
Ensure that only 1 to 16
threads are exposed on the
rod end after adjustments
To Next Page
