ICON A5 - Page 330

9-94 FLIGHT CONTROLS / YAW CONTROLS
ICON A5 / MAINTENANCE MANUAL CHANGE C3
CHAPTER 9
FIGURE 9-59
CENTERING SPRING INSTALL
15. Lock all turnbuckle clips (2 per turnbuckle) in place, refer to Figure 9-60:
a. 4 total on aft section of Yaw System – 2X ICA012239 (Rod End), 2X MS21256-2 (Wire
Terminal)
b. 4 total on mid section of Yaw System – 4X MS21256-1
c. 8 total on Rudder Pedal Control Cables – 8X MS21256-2

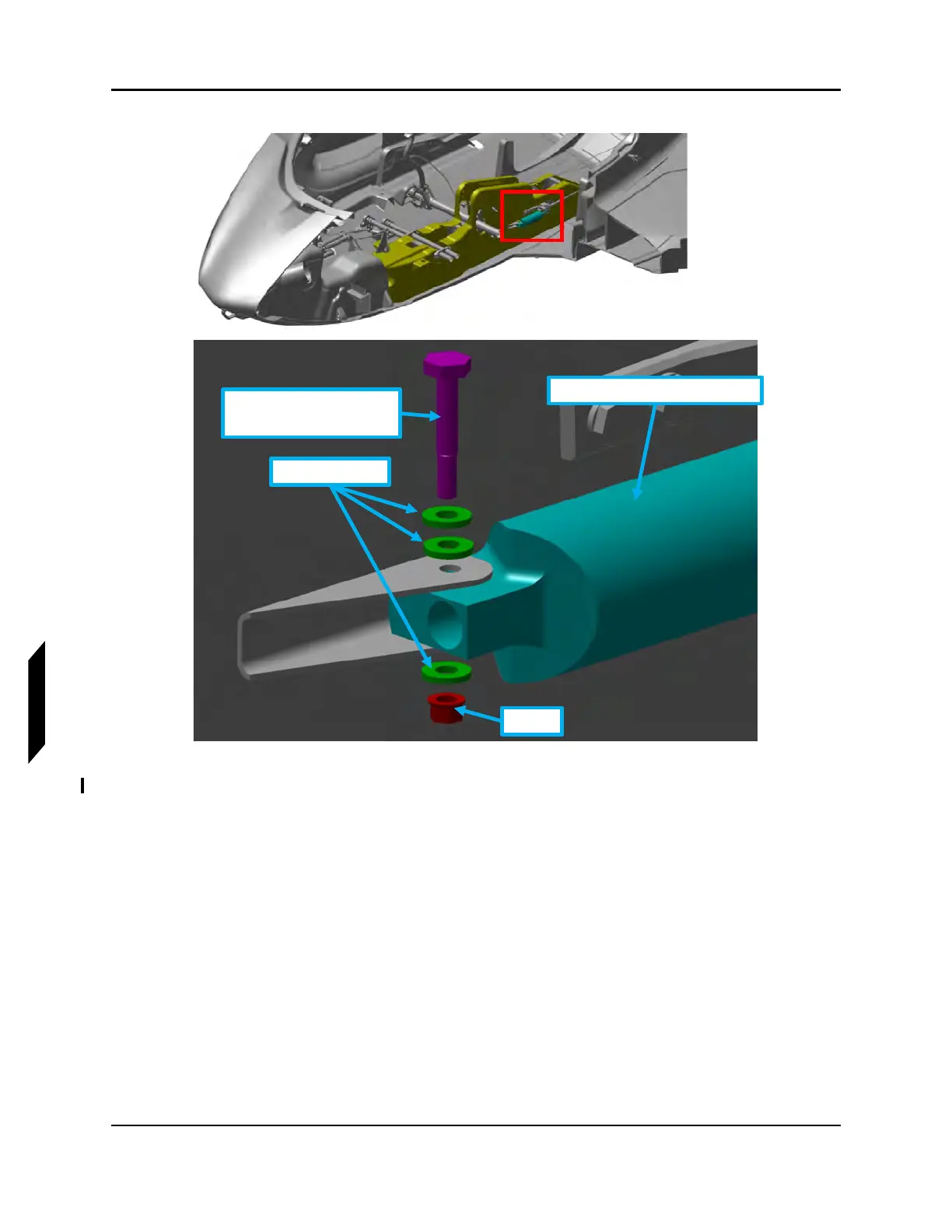

Centering Spring (reference)
Bolt (1)
Apply Loctite 243 (202)
3x Washer (12)
Nut (6)
