FLIGHT CONTROLS / YAW CONTROLS 9-95
CHANGE C3 ICON A5 / MAINTENANCE MANUAL

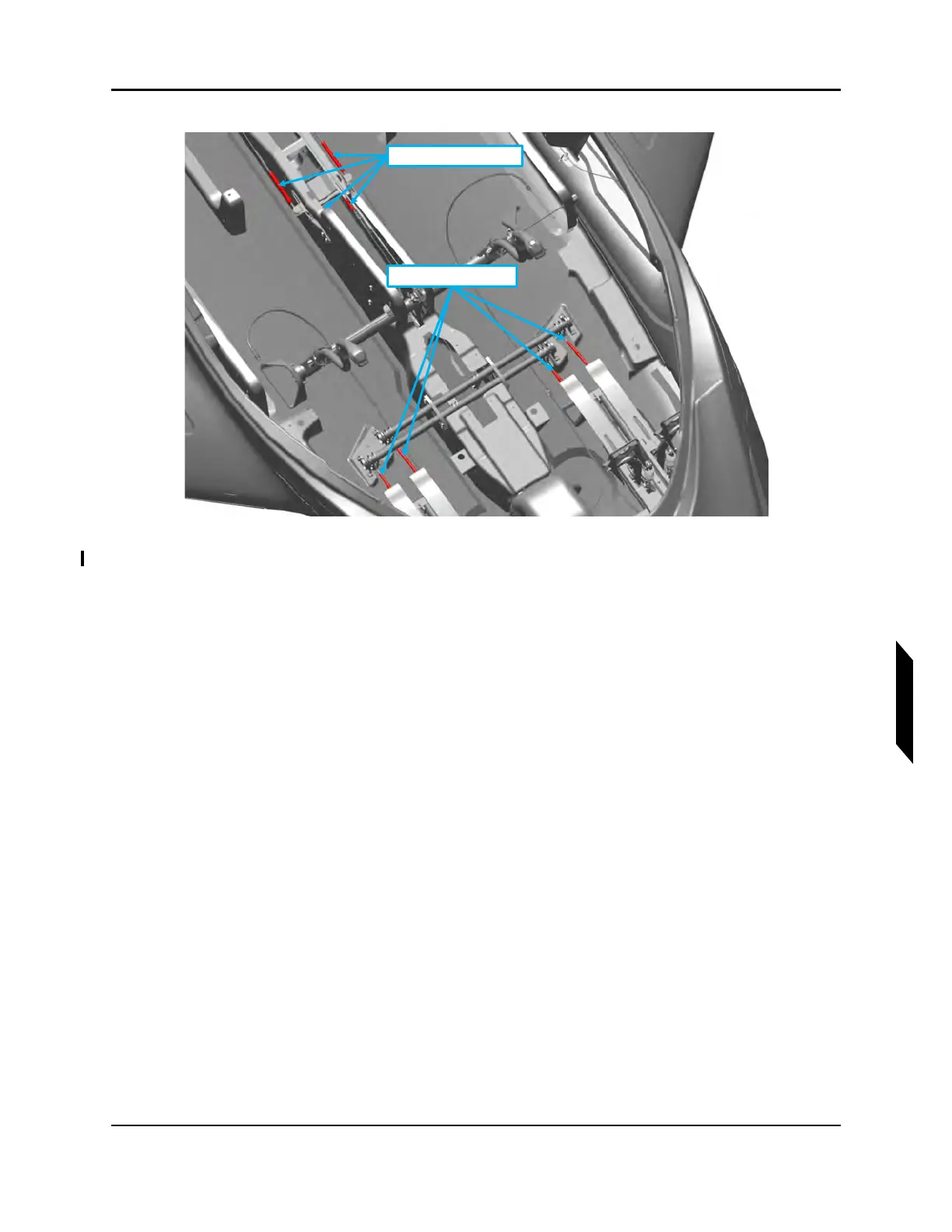

FIGURE 9-60
TURNBUCKLE LOCATION
16. Position the rudder rigging template (ICA013055) or a protractor as shown in Figure 9-61, Center
the 0° indication of the rigging template or protractor with respect to the center of the tail section
under the rudder.
Lock turnbuckle clips here
Lock turnbuckle clips here
