10-22 FUEL SYSTEM / FUEL TANK (MY18+)
ICON A5 / MAINTENANCE MANUAL CHANGE C2
FIGURE 10-7

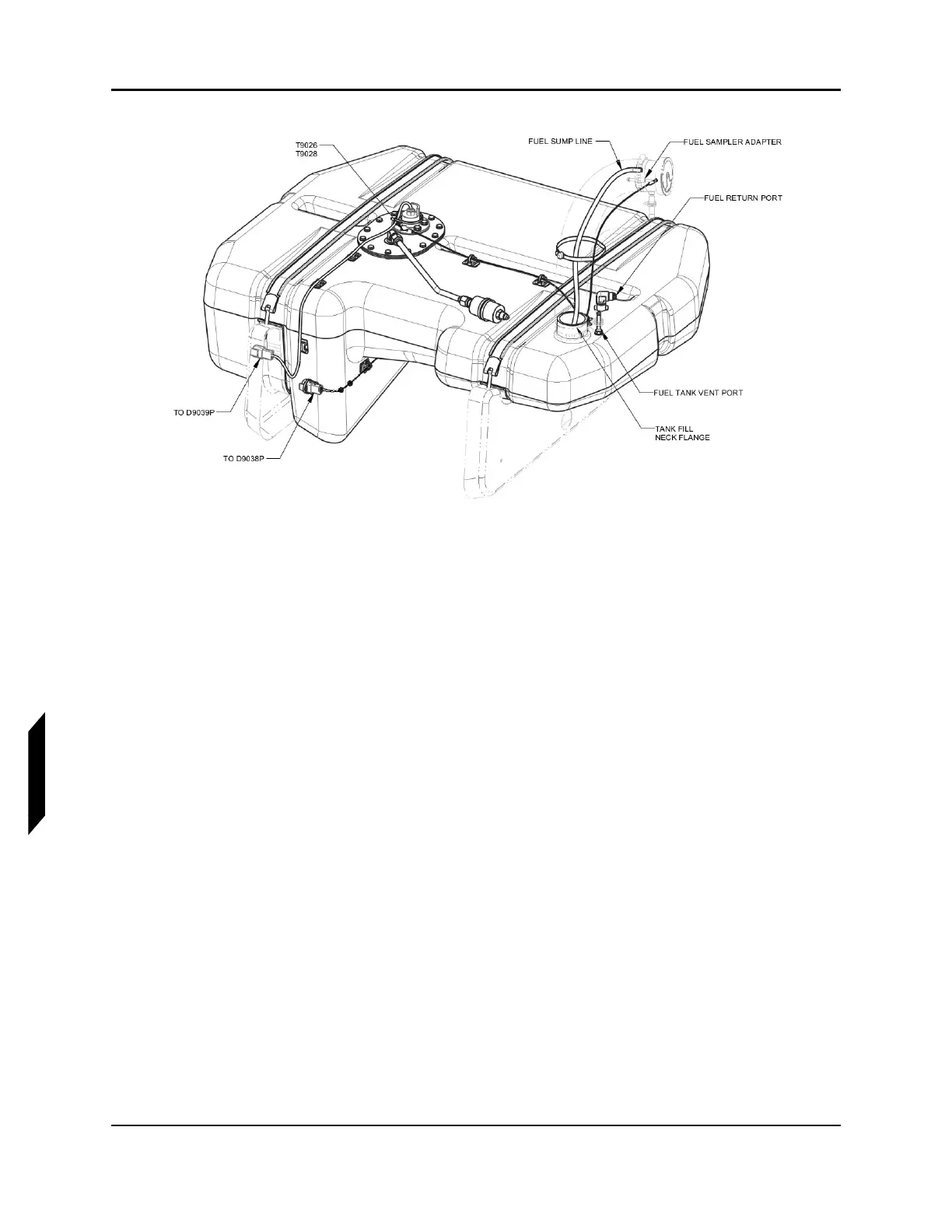

FUEL SUMP LINE AND ELECTRICAL CONNECTIONS
7. Install the bottom end of the filler neck onto the fuel tank opening flange so that there is a .2”±.1”
gap between the bottom face of the filler neck and the top face of the fuel tank. Attach the top
end of the filler neck onto the fuel cap adapter. (See Figure 10-8.)
