14-54 LANDING GEAR / MAIN LANDING GEAR
ICON A5 / MAINTENANCE MANUAL CHANGE C2
14.6.1.11 Main Landing Gear (MLG) Rigging and Rigging Check with Landing Gear
Down
Use the following procedure to rig the MLG with the gear DOWN. See Step 3 for rigging check instruc-
tions.
TASK INFORMATION:
Type of Maintenance
Line
Level of Certification
LSA-RM
Task Specific Training Required
No
Special Tools Required
Wing Jack Point Adapter—ICA009750
Parts Required
None
Aircraft System and Number
11—Landing Gear
Consumables
None
1. Jack the aircraft up or weight the tail so that the nose gear is clear of the ground (use a safety
block under the forward hull if weighting the tail).
2. With landing gear down, zero a digital protractor along the longer of the two pushrods.

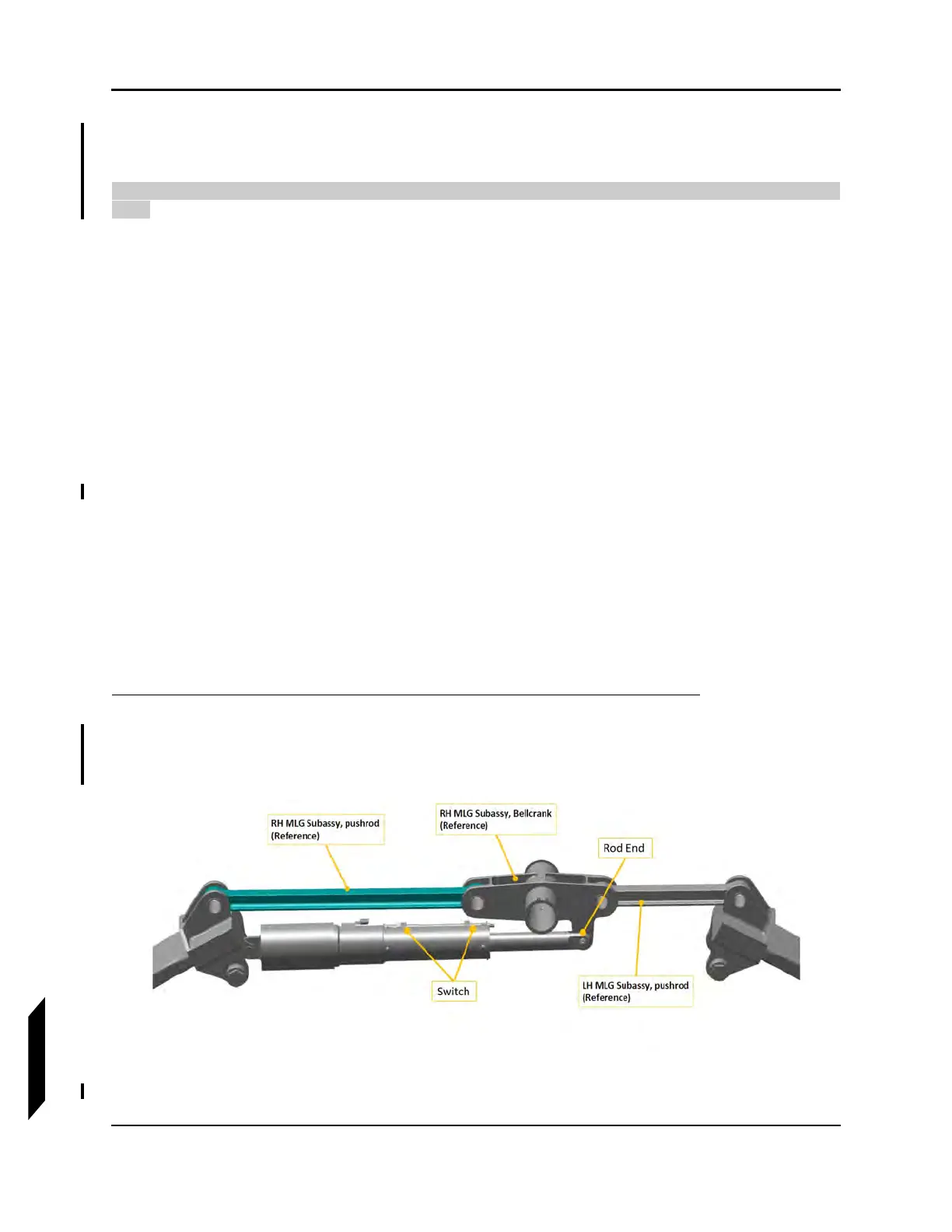

FIGURE 14-26
MAIN LANDING GEAR INSTALLATION
