LANDING GEAR / NOSE LANDING GEAR 14-65
CHANGE C2 ICON A5 / MAINTENANCE MANUAL

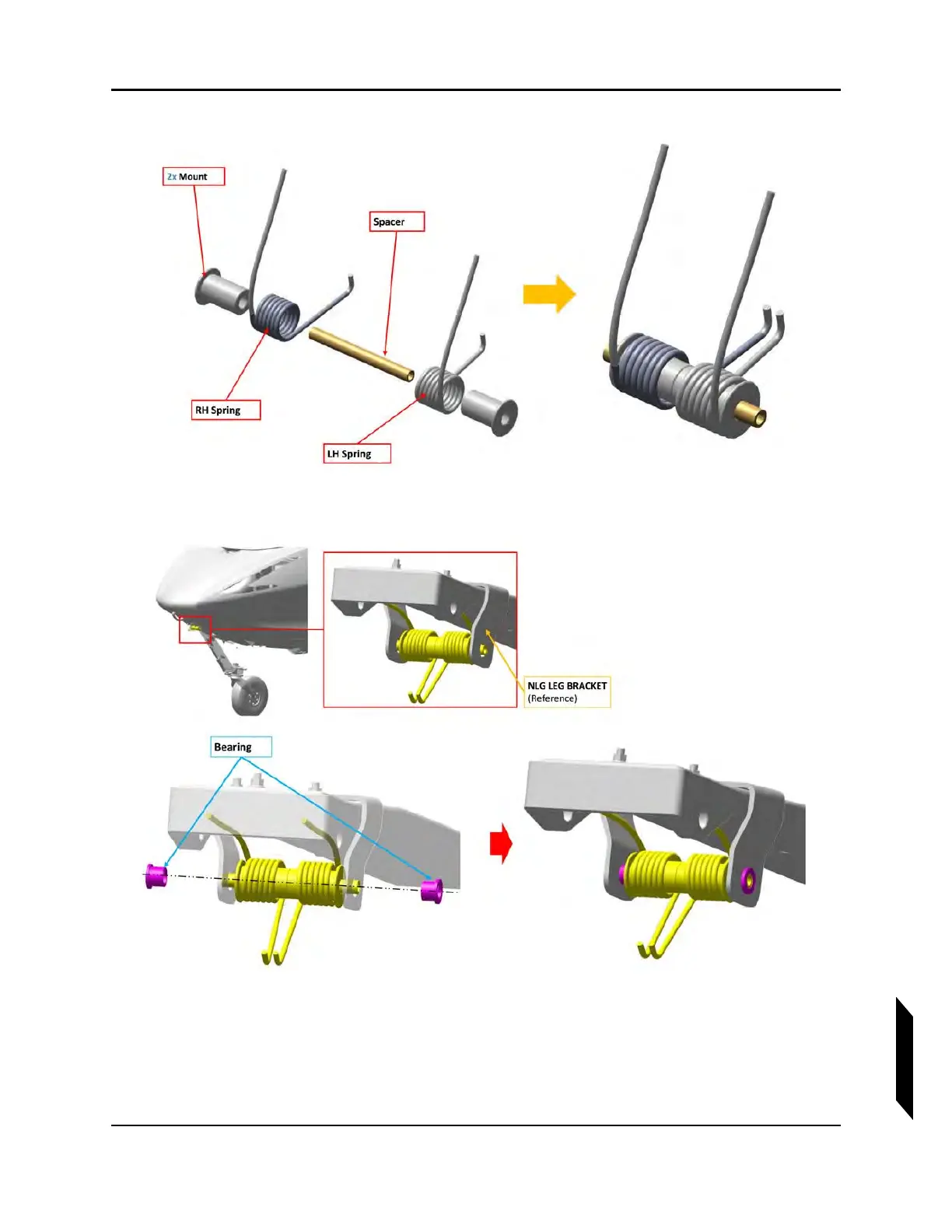

8. Place springs and mounts into position as shown, then slide in the 4040RSS3.125MOD-12
spacer.
9. Apply LOCTITE
®
222™ to the threads of the AN526C632-40 screw.
10. Locate the forward NLG door into position so that the pivot holes align, deflecting the springs in
the process.
11. Slide the AN526 screw in place, along with Z4110-316SS binding post and its NAS11490332R
washer. Tighten snugly.
