2. Orient the nose wheel 180° from the natural in-trail position.
3. Wrap safety wire from end to end around the 750-2-120 nose wheel centering gas strut to
prevent it from extending.
4. Return wheel to the in-trail position, making sure cam follower is now free from contact with the
cam.
5. Use a 1/8 hex wrench to remove the 93615A432 socket head screw and washers holding the
cam follower to the ICA010386 centering bracket.
6. If needed, assemble a new cam follower by applying LOCTITE
®
603 to the outer diameter of a
SFR4ZZ bearing and pressing it into the bore of a ICA010387 cam follower. Allow cure time per
the LOCTITE
®
instructions prior to handling.

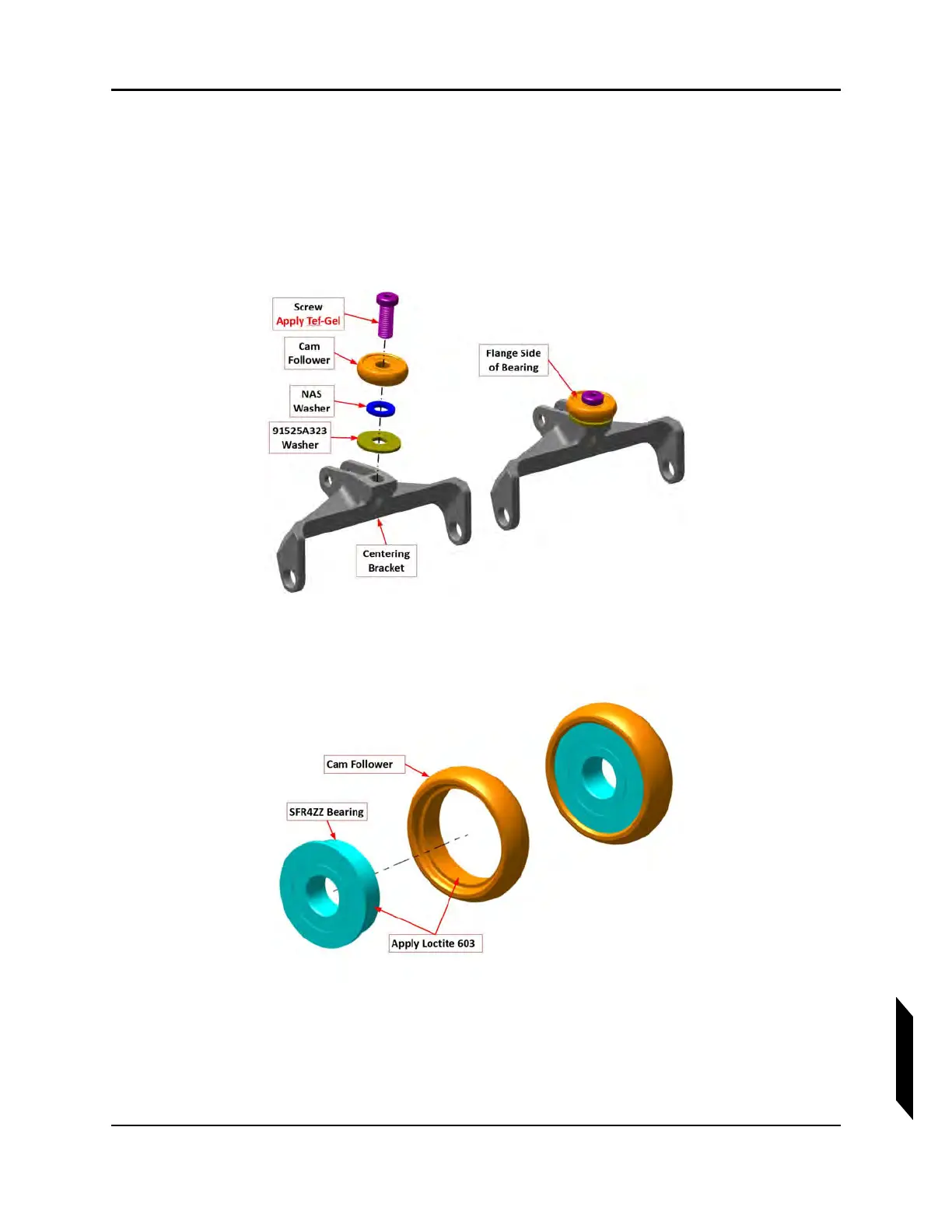

7. Coat a 93615A432 socket head screw with Tef-Gel
®
and assemble the cam follower,
NAS1149C0463R washer and 91525A323 washer to the centering bracket. Be careful to orient
the cam follower so that screw head bears against the flange side of the SFR4ZZ bearing (larger
outer diameter side). Torque the screw to 25 in-lb
f
.
8. Remove the safety wire installed in Step 3.
