14-78 LANDING GEAR / NOSE LANDING GEAR
ICON A5 / MAINTENANCE MANUAL CHANGE C2
CHAPTER 14

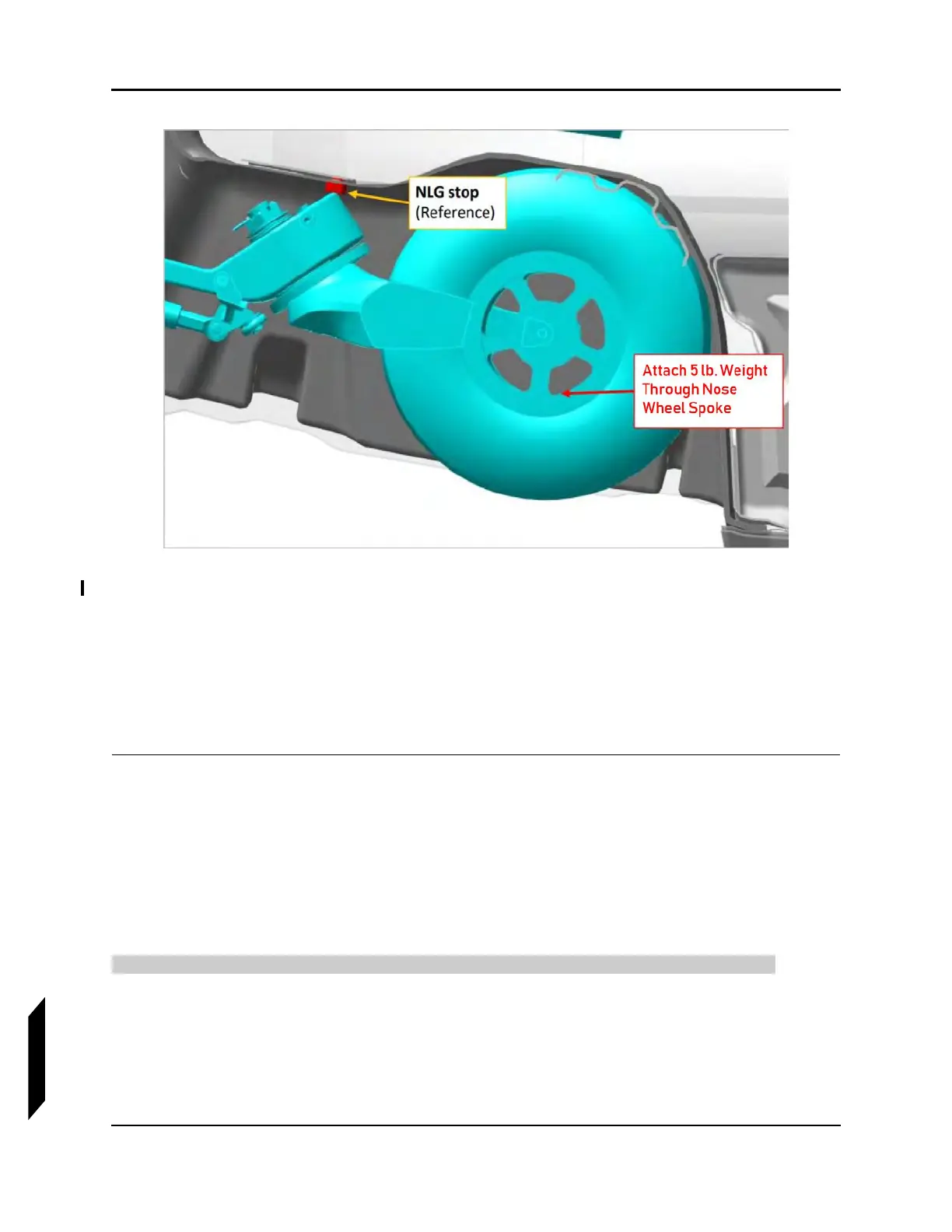

FIGURE 14-30
FIGURE OF ATTACHMENT OF WEIGHT
5. Using Test box, adjust the actuator full retract position until it just makes contact with the NLG
stop.
6. Insert Rig Pin (.1875 + .0100-.0000”) through the Rig Pin holes.
7. If adjustment is necessary, loosen jam nut of forward most Reed Switch saddle and rotate the
thumb wheel to adjust the actuator such that the rig pin slides freely into position.
8. Torque Jam nut to 36-40 in-lbs and check that hardware is secure.
VERIFICATION METHOD:
Verify no fuses blown and landing gear light shows positive gear up indication.
14.7.2.9 Nose Landing Gear (NLG) Rigging and Rigging Check with Landing Gear
Down
Use this procedure to rig the NLG with gear down. See Step 3 for rigging check instructions.
TASK INFORMATION:
Type of Maintenance
Line
Level of Certification
