14-90 LANDING GEAR / AFT NOSE LANDING GEAR DOOR
ICON A5 / MAINTENANCE MANUAL CHANGE C2

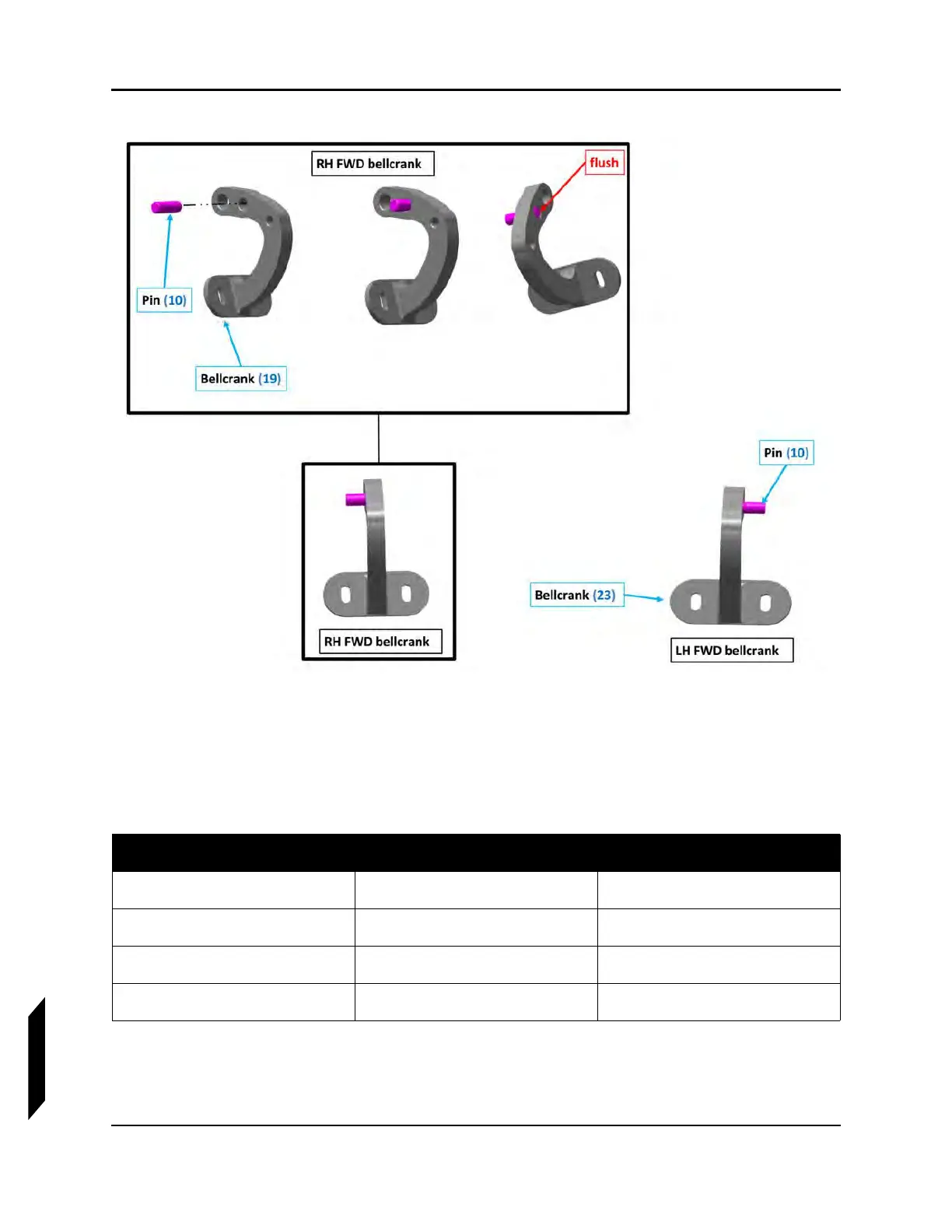

10. Insert bushings into the RH and LH forward bellcranks from the previous step as shown. Install
the forward bellcranks into the RH and LH bellcrank pockets as shown using the hardware listed.
Torque all hardware as specified.
NOTE: Ensure that bolt (14) goes through both the door stop and through
the bellcrank.
Qty Item No Part No
1(4)6362K112
1(5)75101
1(14)AN3C30A
1(29)MS21043-3
