14-92 LANDING GEAR / AFT NOSE LANDING GEAR DOOR
ICON A5 / MAINTENANCE MANUAL CHANGE C2

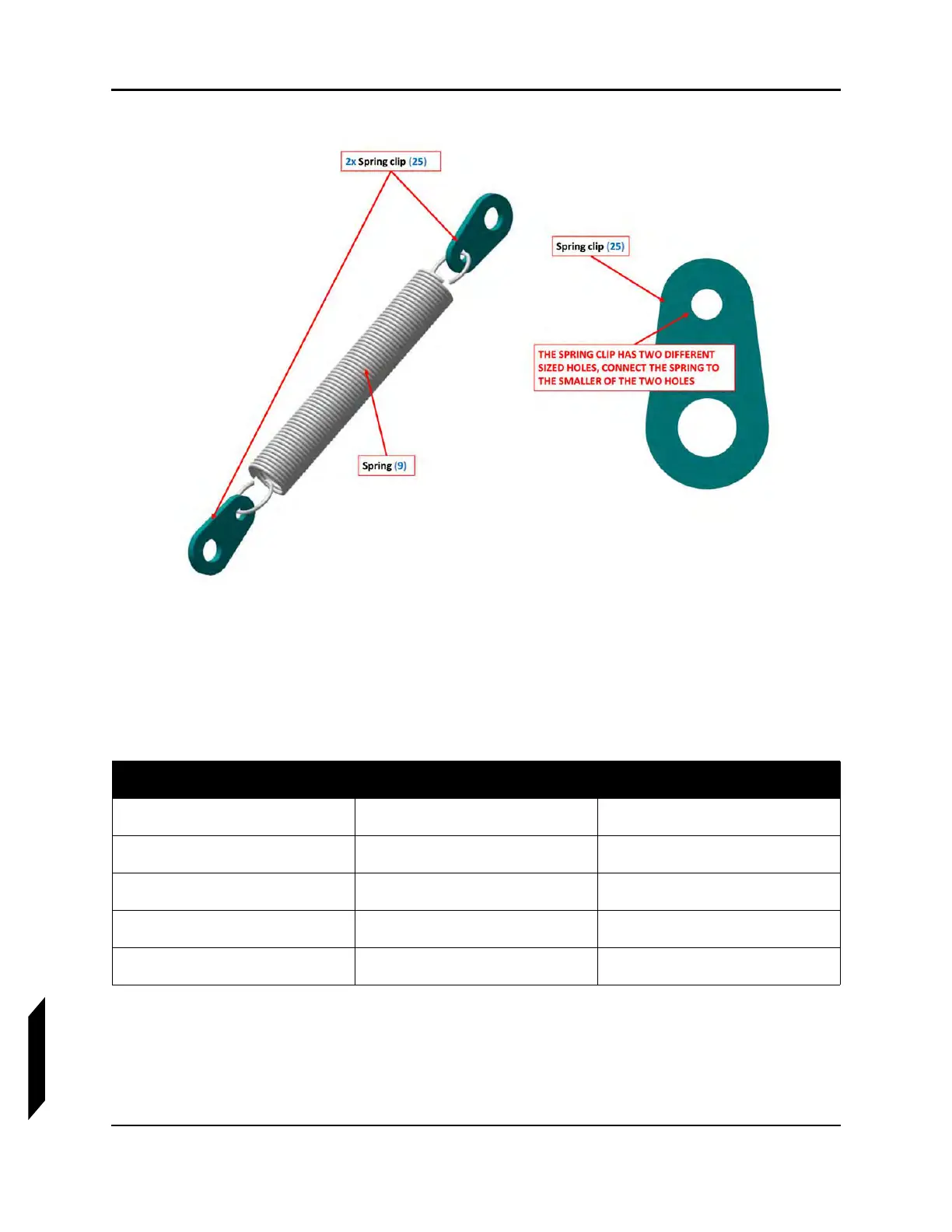

12. Install the door springs and pushrod subassemblies to the door fork. Install one end of the
spring/clip assembly from the previous step and the RH threaded rod end of the pushrod
assembly onto the RH NLG fork using the hardware shown. Torque to the specified value. Repeat
for the mirror-image LG side.
NOTE: Orient pushrod subassembly so that the RH threaded rod end is at
the top and the LH threaded rod end is at the bottom.
Qty Item No Part No
1(11)AN3C10A
1(18)ICA008887
1 (28) ME000270
1(29)MS21043-3
2 (31) NAS1149C0332R
To Next Page
