14-94 LANDING GEAR / AFT NOSE LANDING GEAR DOOR
ICON A5 / MAINTENANCE MANUAL CHANGE C2

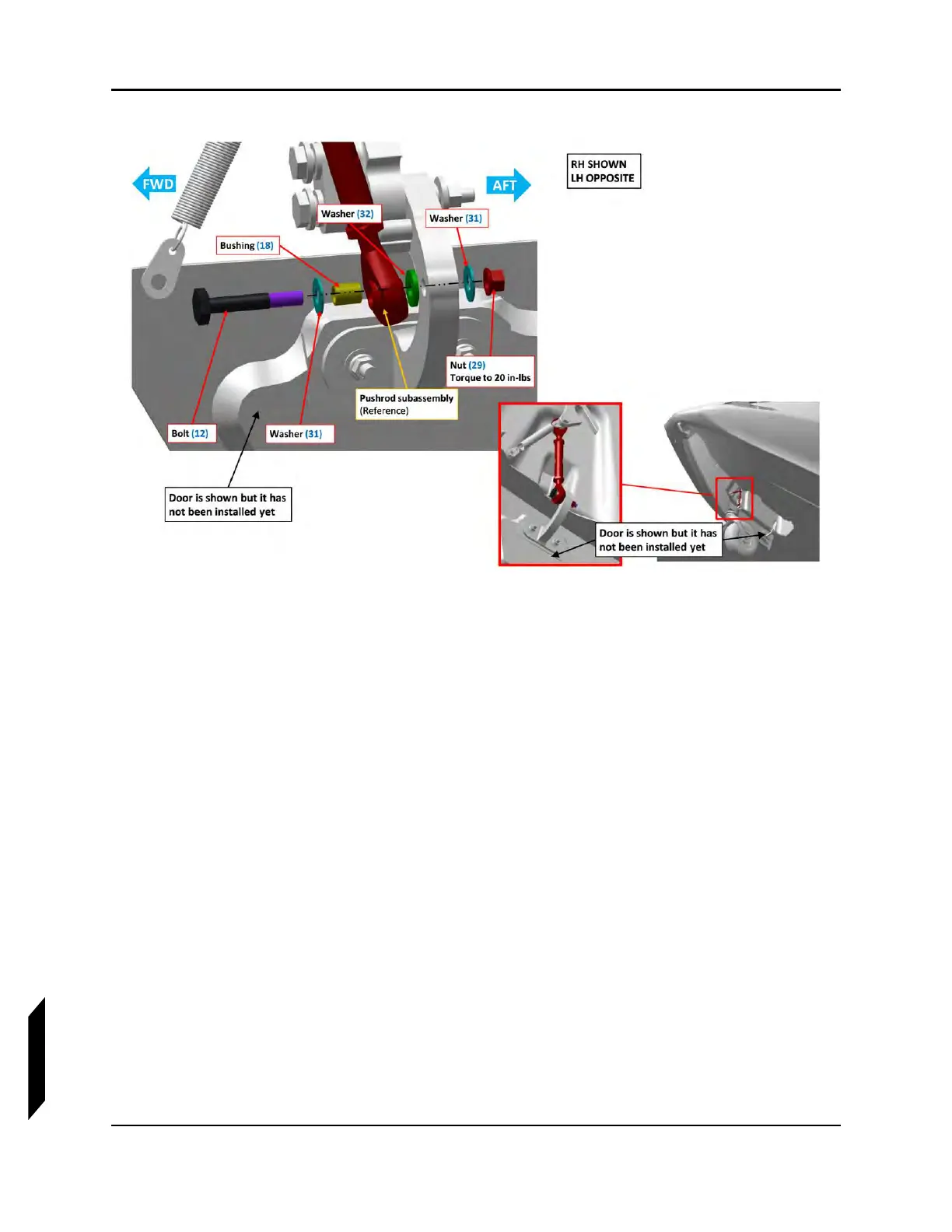

14. Set the pushrod length to the door lock position. Adjust the pushrod so that the fork stop hits the
pin (see Point A in image) at the same time as the lower stop hits the pin (see Point B in the
image). It may be necessary to keep pressure on the door in the open position so that the lower
stop stays in contact with the pin while you adjust the pushrod. Confirm that the door locks in the
open position. Torque the jam nuts to 53 in-lb
f
. Repeat this step for the mirror-image LH side.
