16-18 PROPULSION / ENGINE
ICON A5 / MAINTENANCE MANUAL CHANGE C2

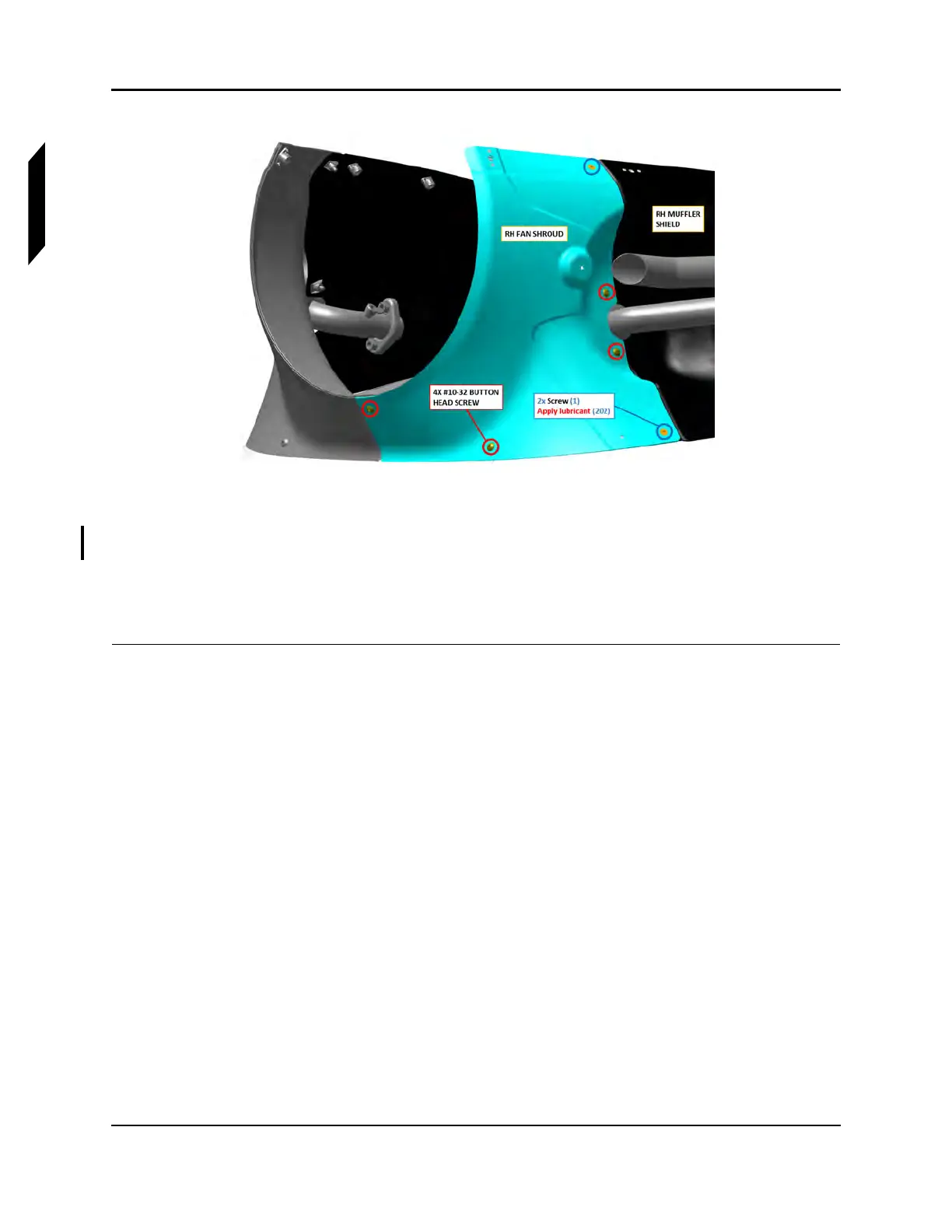

FIGURE 16-8
RH FAN SHROUD INSTALLATION
3. Install the LH and RH muffler fairing with nine button head screws using a #20 Torx driver. Apply
LUBRICANT and torque to 26 in-lb.
4. Position the top engine cowl over the engine and connect the ELT and transponder coax connec-
tors.
5. Use a #15 Torx driver to secure the top engine cowl with 16 1/4-turn fasteners.
VERIFICATION METHOD:
The task is complete when all engine cowlings and exhaust fairings have been installed.
